A surface condenser is one of the most critical heat transfer components in any steam-based power generation or process plant. It converts low-pressure exhaust steam from a turbine back into liquid condensate by rejecting latent heat to cooling water flowing through a bundle of tubes, without the steam and cooling water ever coming into direct contact. This indirect contact design is what separates a surface condenser from a direct-contact (jet or barometric) condenser, and it's the reason surface condensers are the standard choice wherever condensate purity matters — such as boiler feedwater recovery in thermal power stations.
At United Cooling Systems., we design and manufacture surface condensers for power generation, refineries, sugar mills, petrochemical plants, and process industries across India and for export markets. Every unit is custom-engineered around your turbine back-pressure requirements, cooling water availability, and site layout constraints, rather than sold as an off-the-shelf product.

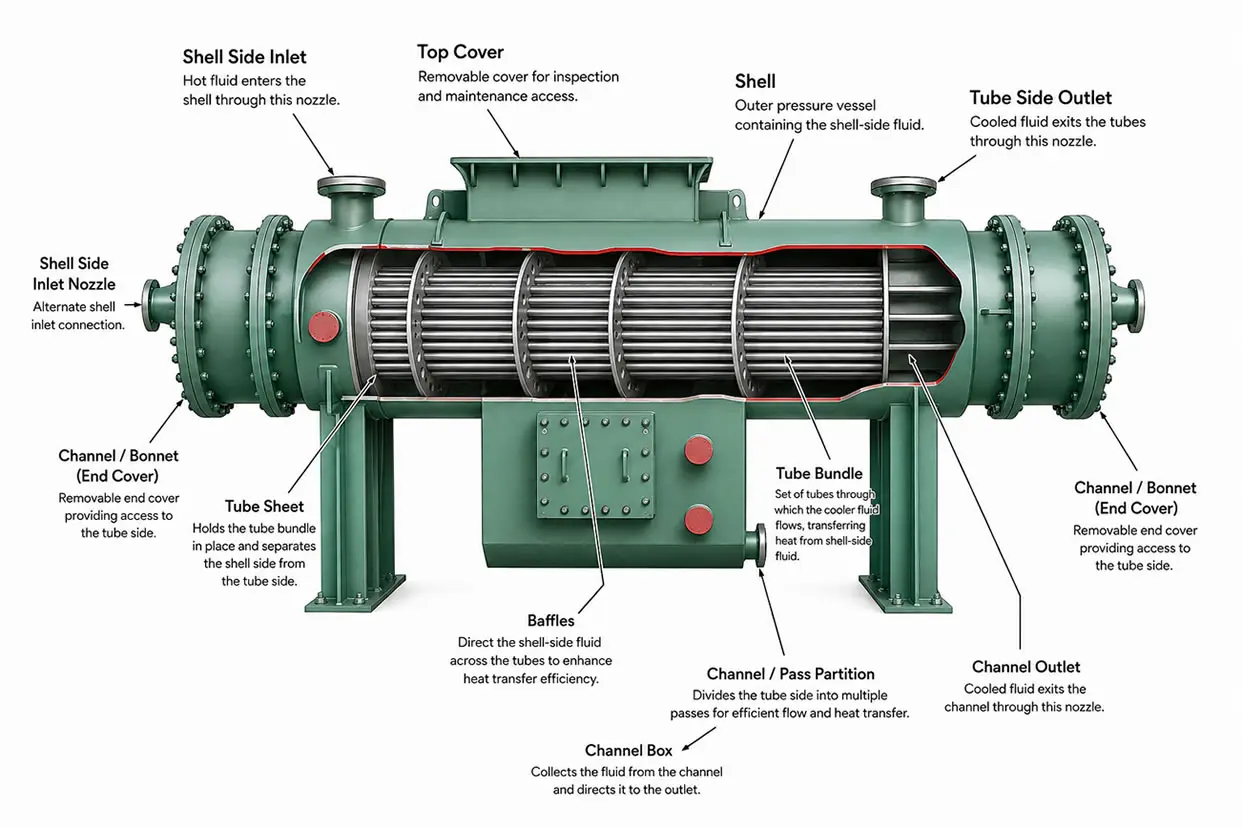

How a Surface Condenser Works
- Steam enters the condenser shell: Exhaust steam leaving the low-pressure end of the turbine enters the condenser shell and passes over a bundle of tubes carrying continuously flowing cooling water.
- Heat is transferred through the tube walls: As the steam moves across the tube bundle, it gives up its latent heat to the cooling water inside the tubes, without the two fluids ever mixing or coming into direct contact.
- Steam condenses into liquid: Once the steam loses enough heat, it condenses on the outer surface of the tubes and turns into liquid condensate.
- Condensate drains to the hotwell: The condensate flows downward by gravity and collects in the hotwell at the base of the shell, ready to be pumped onward.
- Vacuum is maintained inside the shell: The condenser operates under vacuum — typically 0.1 to 0.15 bar absolute for a standard 210–500 MW turbine application — which lets the turbine extract the maximum possible work from the steam before it exhausts.
- Vacuum directly affects plant efficiency: Even a small drop in vacuum reduces turbine output and increases heat-rate penalties, which is why tube layout, air removal, and cooling water velocity are all engineered carefully rather than left to chance.
- Condensate is recovered as feedwater: From the hotwell, the condensate is pumped back to the boiler as feedwater, closing the steam cycle.
- Recovery reduces operating costs: Since this water has already been treated and de-mineralised, recovering it through a surface condenser — instead of losing it as in an open-cycle system — significantly cuts make-up water treatment costs, one of the larger recurring expenses in thermal plant operation.
Types of Surface Condensers We Manufacture
Not every plant layout suits the same condenser configuration. We manufacture the following types based on turbine orientation, cooling water source, and available footprint:
- Downflow (axial) surface condensers — the most common configuration for large turbo-generator sets, positioned directly beneath the turbine's low-pressure exhaust.
- Side-mounted (radial) surface condensers — used where the turbine exhaust discharges horizontally and vertical space beneath the turbine is limited.
- Two-pass and single-pass condensers — single-pass units suit plants with high cooling water flow and low temperature rise (once-through seawater or river-water cooling), while two-pass designs are preferred where cooling water is recirculated through a cooling tower and a higher temperature rise per pass is acceptable.
- Divided waterbox condensers — allow half the tube bundle to be taken offline for cleaning or tube plugging while the unit continues operating at reduced load, which is valuable for plants that cannot tolerate a full shutdown for maintenance.
Design Standards We Follow
Surface condensers operate under continuous thermal cycling, vacuum stress, and, depending on the water source, potentially corrosive or brackish cooling water. Because of these conditions, we design every unit to recognise international codes rather than generic fabrication practice:
- HEI (Heat Exchange Institute) Standards for Steam Surface Condensers govern thermal rating, tube sizing, and performance testing specific to condenser applications.
- TEMA (Tubular Exchanger Manufacturers Association)— governs mechanical construction classes (typically Class R for severe power/process duty).
- ASME Section VIII, Division 1 — governs pressure vessel design, particularly relevant for the waterbox and shell as pressure-retaining components.
Following these standards isn't a formality — it directly affects tube vibration resistance, thermal expansion accommodation, and long-term reliability under vacuum and cyclic loading, all of which are common failure points in poorly engineered condensers.
Construction and Tube Bundle Design
The performance and service life of a surface condenser is determined largely by its tube bundle layout, and this is where most of our engineering effort goes on every project.
- Tube arrangement: We lay out tubes to minimise steam-side pressure drop while avoiding "steam lanes" that starve inner tube rows of flow, a common design flaw that reduces effective heat transfer area. Baffle plates with vertical cuts are positioned to direct condensate away from the active heat transfer zone so it doesn't re-evaporate or blanket lower tube rows — a detail that has a real, measurable effect on terminal temperature difference (TTD).
- Tube-to-tubesheet joints: Tubes are expanded and, where duty demands it, seal-welded into the tubesheet to accommodate the differential thermal expansion between the tube bundle and shell during startup and shutdown cycles, preventing joint leakage over the unit's operating life.
- Air removal provisions: Non-condensable gases (air ingress through glands, valve stems, and joints) collect inside the shell and blanket tube surfaces, degrading heat transfer if not continuously removed. We size the air cooling section and vent connections to match your ejector or vacuum pump capacity.
- Waterbox design: Waterboxes are designed for the specified cooling water pressure with removable covers for tube-end access, and divided-box configurations are available where partial-load cleaning capability is required.
Materials of Construction
Material selection is driven by cooling water chemistry (fresh, brackish, or seawater), operating temperature, and expected service life, not by a single default specification:
| Component | Common Material Options |
|---|---|
| Tubes | Admiralty brass, copper-nickel (90/10, 70/30), stainless steel SS304/SS316, titanium |
| Tubesheet | Muntz metal, carbon steel with cladding, stainless steel |
| Shell | Carbon steel (IS 2062 / equivalent) |
| Waterbox | Carbon steel, epoxy-coated or rubber-lined for brackish/seawater service |
For plants using seawater or brackish cooling water, titanium or copper-nickel tubing is generally specified for corrosion resistance; for closed-loop freshwater systems with treated cooling water, stainless steel or admiralty brass tubes are typically more cost-effective. Our engineering team reviews your cooling water analysis report before finalising tube material — this single decision has the largest impact on both upfront cost and long-term maintenance frequency.
Key Design Parameters We Engineer Around
Every surface condenser quote we prepare is based on a technical data exchange, not a catalog selection. The parameters that drive the design include:
- Steam flow rate and exhaust enthalpy at the turbine's rated and worst-case operating conditions
- Cooling water inlet temperature and flow rate, which vary significantly by season and region
- Design vacuum / back-pressure required by the turbine manufacturer
- Cooling water source — once-through river/seawater or recirculated through a cooling tower — which determines fouling allowance and material choice
- Cleanliness factor and fouling resistance , based on water quality and expected cleaning frequency
- Plant layout constraints , including headroom beneath the turbine and hotwell pump NPSH requirements
Because these inputs vary from plant to plant, no two surface condensers we build are dimensionally identical, even when rated for similar steam flows.
Applications
- Thermal and combined-cycle power plants — condensing turbine exhaust steam and recovering condensate as boiler feedwater
- Sugar and distillery plants— condensing exhaust steam from back-pressure or condensing turbines used for cogeneration
- Petrochemical and refinery process units — condensing process steam in vacuum distillation and stripping operations
- Captive power plants in cement, steel, and textile industries running waste-heat-recovery or coal-fired turbines
- Marine and offshore installations where compact, vibration-resistant condenser designs are required
Quality Control and Testing
Before despatch, every surface condenser undergoes:
- Hydrostatic testing of the shell and waterbox at 1.5 times design pressure per ASME Section VIII requirements
- Tube-to-tubesheet joint testing to confirm leak-tight expansion/welding
- Dimensional inspection against approved general arrangement drawings
- Third-party inspectio (TPI) coordination where specified by the client, including material test certificates (MTCs) for tubes, tubesheet, and shell plate
Documentation packages, including fabrication drawings, MTCs, and hydro test certificates, are provided with every unit for your plant's QA records and statutory compliance.
Why Choose United Cooling Systems for Your Surface Condenser
We are not a trading company reselling imported units — every surface condenser is designed and fabricated in our own manufacturing facilities in Coimbatore, Tamil Nadu, giving us direct control over tube bundle quality, welding standards, and delivery timelines.
- Custom thermal design for your specific steam flow, vacuum requirement, and cooling water conditions, rather than a fixed catalogue size
- In-house tube bundle fabrication with controlled tube expansion and welding processes vMaterial flexibility across copper alloys, stainless steel, and titanium based on your cooling water chemistry
- Code compliance to TEMA, ASME Section VIII, and HEI Standards for Steam Surface Condensers
- Decades of experience across heat exchangers, air-cooled condensers, and cooling towers, giving our engineering team a broad base of thermal design experience beyond condensers alone
Frequently Asked Questions
1. What vacuum level can your surface condensers achieve?
Design vacuum depends on turbine back-pressure requirements, cooling water temperature, and cooling water flow rate. Most utility-scale applications operate in the 0.10–0.15 bar absolute range; we size the tube surface area and air removal system to meet your specific target based on the operating data you provide.
2. Can you supply a surface condenser to replace an existing unit without changing the foundation?
Yes. Retrofit and replacement condensers are engineered to match your existing waterbox nozzle locations, support foundation, and turbine exhaust flange dimensions, so plant downtime during replacement is minimized.
3. What cooling water flow rate does a surface condenser typically require?
This depends on steam flow, allowable temperature rise, and design cleanliness factor. In general, cooling water flow requirements increase with steam condensing load; our technical team precisely determines this utilizing your steam and water data instead of using a generic ratio, since undersizing water flow is one of the most common causes of poor vacuum performance in the field.
4. How often does a surface condenser need tube cleaning?
Cleaning frequency depends on cooling water quality — plants using untreated river or seawater typically require more frequent cleaning than closed-loop systems with treated water. We offer divided waterbox designs specifically so tube cleaning can be performed on half the bundle without a full unit shutdown.
5. Do you provide site erection and commissioning support?
Yes, our team can support site installation guidance, hydro-testing supervision, and commissioning assistance to ensure the unit is correctly integrated with your turbine exhaust and vacuum system before startup.
6. What is the typical delivery lead time for a custom surface condenser
Lead time depends on tube material availability, size, and current production load, and is confirmed at the time of order based on your finalized technical specification.
Get a Custom Surface Condenser Quote
If you're specifying a new surface condenser or replacing an aging unit, share your turbine exhaust steam data, cooling water source, and site layout with our engineering team, and we'll prepare a thermal design proposal matched to your plant's actual operating conditions — not a generic catalog size.
