What Is a Dump Condenser? Definition & Working Principle
A dump condenser is an industrial heat exchanger made by United Cooling Systems. in Coimbatore that condenses hot refrigerant vapor into liquid using air, water, or evaporative cooling techniques in order to remove surplus heat from refrigeration and process systems. Dump condensers ensure that your cooling systems maintain the proper operating temperature, helping to prevent overheating and improve energy efficiency.
→ Surface Condenser → Air Cooled Condenser → Shell and Tube Heat Exchanger → Fin Fan Cooler

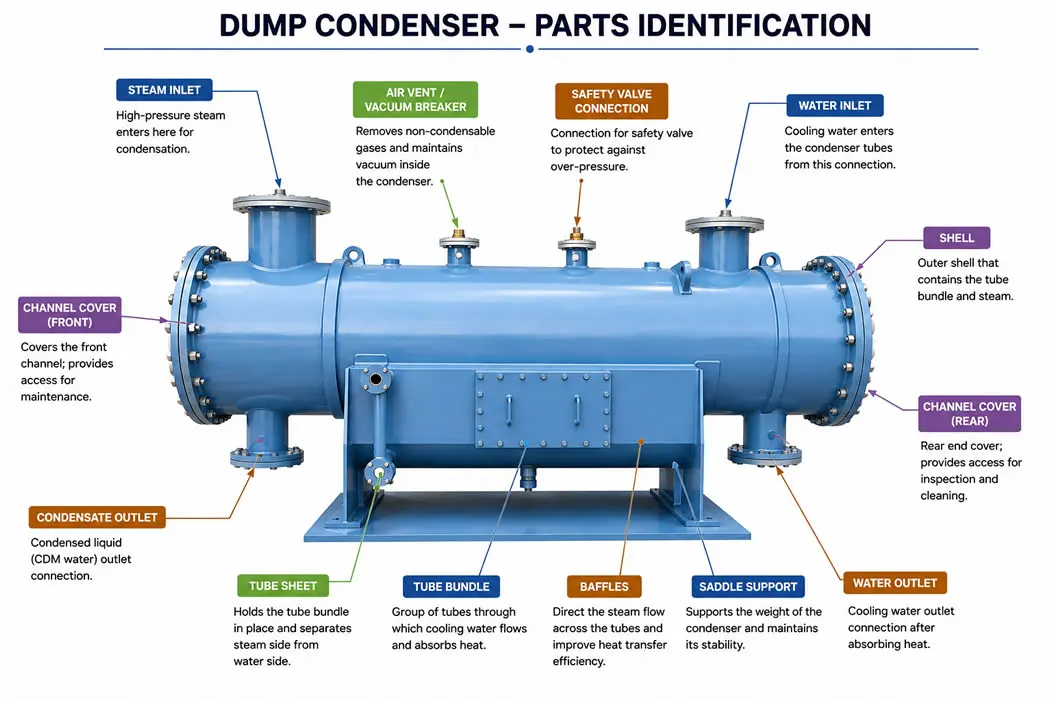

Dump Condenser Components & Parts Identification
A dump condenser consists of several precision-engineered components working together to transfer heat efficiently and safely. Understanding each part helps plant engineers select the right unit, operate it correctly, and plan maintenance more effectively.
Key Parts of a Dump Condenser Explained
| Part Name | Function |
|---|---|
| Steam Inlet | High-pressure steam enters here for condensation |
| Water Inlet | Cooling water enters the condenser tubes from this connection |
| Shell | Outer cylindrical pressure vessel that contains the tube bundle and steam |
| Tube Bundle | Group of tubes through which cooling water flows and absorbs heat from steam |
| Tube Sheet | Holds the tube bundle in place and completely separates steam side from water side |
| Baffles | Direct the steam flow across the tubes to improve heat transfer efficiency |
| Condensate Outlet | Condensed liquid CDM water outlet connection after heat exchange |
| Water Outlet | Cooling water outlet connection after absorbing heat from steam |
| Channel Cover Front | Covers the front channel and provides easy access for maintenance |
| Channel Cover Rear | Rear end cover that provides access for inspection and cleaning |
| Air Vent / Vacuum Breaker | Removes non-condensable gases and maintains correct vacuum inside the condenser |
| Safety Valve Connection | Connection point for safety valve to protect against dangerous over-pressure |
| Saddle Support | Supports the full weight of the condenser and maintains structural stability |
How Does a Dump Condenser Work? Step by Step Process
Dump condensers transfer heat from the refrigerant to a cooling medium. Here’s how the process works step-by-step:
- Refrigerant Flow:Hot, high-pressure refrigerant gas flows into the condenser from the refrigeration system.
- Heat Dissipation:The refrigerant cools as it passes through the condenser and loses heat to the surrounding medium—air, water, or a combination of both.
- Condensation: As the refrigerant loses heat, it changes from a gas to a liquid.
- Discharge: The liquid refrigerant is sent back to the compressor to begin the cycle again.
Types of Dump Condensers: Air, Water and Evaporative
Different cooling needs require different types of dump condensers. Here are the most common types used in industrial and commercial settings:
Air-Cooled Condensers
Uses: Ideal for locations with limited water supply or where ease of maintenance is a priority. These condensers rely on air to cool the refrigerant and are typically installed outdoors.
Benefits: Low maintenance, no need for water access, and cost-effective for smaller systems.
Water-Cooled Condensers
Uses: Best for large-scale industrial systems with access to abundant water, such as in chemical plants or manufacturing facilities. These condensers utilize water (often from cooling towers) to efficiently remove heat.
Benefits: Highly efficient for large systems, excellent for heavy-duty applications.
Evaporative Condensers
Uses: Ideal for systems that need both high heat rejection and water conservation. They combine air and water cooling, utilizing evaporation to cool the refrigerant.
Benefits: Best of both worlds, offering efficient cooling while conserving water.
→ Surface Condenser → Air Cooled Condenser → Shell and Tube Heat Exchanger → Fin Fan Cooler
Dump Condenser Technical Specifications
| Parameter | Specification |
|---|---|
| Condenser Types | Air Cooled, Water Cooled, Evaporative |
| Shell Material | Carbon Steel, SS304, SS316 |
| Tube Material | Copper, Copper Nickel, Stainless Steel |
| Fin Material | Aluminium, Copper, Stainless Steel |
| Operating Pressure | Up to 25 bar |
| Operating Temperature | -40°C to 300°C |
| Refrigerants Supported | R22, R134a, R404A, R410A, Ammonia, CO2 |
| Design Standards | ASME Section VIII, TEMA, IBR, ISO 9001 |
| Airflow Clearance Required | Minimum 600 mm all sides |
| Customization | Full custom design available |
| Manufacturing Location | Coimbatore, Tamil Nadu, India |
| Lead Time | 4 to 10 weeks |
Dump Condenser Maintenance: Complete Checklist
Proper maintenance of your dump condenser ensures its longevity and peak performance. Here’s a checklist for keeping your condenser in top shape:
- Cleaning: Regularly clean coils, fins, and air intakes to prevent dirt and debris buildup that could impede airflow.
- Inspection: Look for signs of wear, leaks, or corrosion. Early detection helps avoid costly repairs.
- Lubrication: Ensure moving parts, like fans and water pumps, are properly lubricated to avoid friction damage.
- Fan & Pump Checks: Ensure fans and pumps are working efficiently to maintain optimal heat dissipation.
- Refrigerant Monitoring: Low refrigerant levels can significantly reduce efficiency and damage the system. Keep track of refrigerant levels to ensure they stay within the recommended range.
- Water Quality: For water-cooled systems, ensure the water is treated to prevent scaling and corrosion.
Dump Condenser Problems and Troubleshooting Solutions
While dump condensers are built to be durable, they can experience a few issues over time. Here’s how to troubleshoot common problems:
Reduced Cooling Efficiency
Cause: Dirt, debris, or scale buildup on condenser coils.
Fix: Clean the coils regularly with a coil cleaner and remove any debris blocking airflow. Ensure there’s no obstruction around the unit to allow proper airflow.
Refrigerant Leaks
Cause: Damaged coils or worn seals.
Fix: Look for visible signs of refrigerant leaks like oil stains or frost on coils. Repair the damage and recharge the system with the proper refrigerant.
High Head Pressure
Cause: Dirty coils, poor airflow, or insufficient water flow in water-cooled systems.
Fix: Clean the coils, remove obstructions, and check for clogged filters. Ensure the water pump functions properly and water treatment systems are maintained.
Faulty Fans or Pumps
Cause: Wear and tear on fan blades or water pump components.
Fix: Inspect fans and pumps for damage, lubricate moving parts, and replace any faulty components.
Dump Condenser Installation Space Requirements
To ensure your dump condenser operates efficiently, proper installation space is key. Here are the space requirements you should consider:
- Airflow Clearance: Ensure at least 2-3 feet of clearance on all sides of air-cooled condensers to promote proper airflow.
- Water Supply (Water-Cooled Systems): If you're installing a water-cooled condenser, ensure sufficient water flow and pressure, with space for connecting pipes and valves.
- Accessibility: Choose an accessible location for easy maintenance and repairs.
- Noise Considerations: If your condenser unit produces significant noise, install it away from quiet zones or sensitive areas.
- Environmental Protection: Place the condenser in an area protected from extreme weather conditions like rain or snow.
Dump Condenser Applications Across Industries
Dump condensers are versatile and used in various industries. Here are some key applications:
- Industrial Refrigeration: Essential for factories, warehouses, and cold storage facilities.
- HVAC Systems: Crucial in large-scale HVAC systems, including commercial buildings and data centers.
- Food and Beverage: Used in processing plants and beverage production facilities to maintain cold storage temperatures.
- Chemical Plants: Necessary for regulating temperatures in sensitive chemical processes.
Advanced Dump Condenser Technologies and Future Trends
The future of dump condensers is driven by innovations in cooling technology. Here are some trends to look out for:
- Energy-Efficiency Innovations: Expect new technologies designed to reduce energy consumption, making systems more sustainable.
- Smart Control Systems: IoT-enabled systems will allow for real-time monitoring of condenser performance, optimizing energy use based on demand.
- Environmentally Friendly Refrigerants: The use of low-impact refrigerants will reduce greenhouse gas emissions in cooling systems.
- AI and Predictive Maintenance: Artificial intelligence (AI) will help predict when maintenance is needed, reducing downtime and improving system longevity.
Dump Condenser Frequently Asked Questions (FAQ)
What is the main purpose of a dump condenser?
A: By condensing hot refrigerant vapor into liquid, a dump condenser eliminates excess heat from industrial refrigeration and process systems, preserving safe operating temperatures and increasing system energy efficiency.
What is the recommended frequency of maintenance for a dump condenser?
A: Under typical operating conditions, dump condensers should be inspected and maintained every six to twelve months. For optimal operation, heavy industrial applications with a high fouling risk may need maintenance every three to six months.
What symptoms point to the necessity to repair my dump condenser?
A: Reduced cooling efficiency, increased energy use, strange noise or vibration, obvious refrigerant leaks, frost buildup on coils, and elevated head pressure measurements are all warning indicators.
Is it possible to use a dump condenser in both large and small systems?
A: Dump condensers come in a variety of capacities, ranging from big heavy-duty industrial process cooling systems to tiny commercial refrigeration units. They can be evaporative, water-cooled, or air-cooled.
Conclusion
Dump condensers are essential to the dependable operation of chemical processing, power generation, HVAC, and industrial refrigeration systems. Whether you oversee a huge chemical plant, a cold storage facility, or a heavy-duty HVAC system, a well-maintained dump condenser reduces energy consumption, averts system failure, and greatly increases equipment service life. United Cooling Systems Pvt. Ltd. in Coimbatore manufactures custom dump condensers according to ASME requirements. United Cooling Systems Pvt. Ltd. designs these condensers for long-term dependable performance in all significant industrial applications in India and overseas markets.
