Finned Tube Heat Exchangers

What is a Finned Tube Heat Exchangers?

Finned tube heat exchangers are a specific type of thermal conduit meant to improve efficiency of heat transfer. They are made from an aluminum-clad carbon steel that makes elongated tubes and also has brazed aluminum fins to improve the surface area. Due to the construction, thermal interaction between the fluid inside the tube and the medium surrounding it is much more efficient. Compared to generic tubes, heat exchange is significantly faster. These finned tubes can be found in various shapes such as oval, round and flat, and are key elements in heat exchangers, boosting performance in countless applications.

Finned Tube Heat ExchangersTechnical Specifications

Types of Finned Tube Heat Exchangers

1. Spiral Finned Tubes: Fins twisted helically around the tube in a continuous spiral. Most common type — suitable for gas-to-liquid and gas-to-gas heat transfer in air coolers and waste heat recovery systems.
2. Serrated Finned Tubes: Fins with cut edges that create turbulence in the airflow, significantly improving heat transfer coefficients. Used in air cooled heat exchangers and fin fan coolers.
3. Extruded Finned Tubes: Fins formed by mechanically extruding material from the outer tube wall. Provides the strongest bond between fin and tube — ideal for high-temperature applications.
4. Welded Finned Tubes: Fins welded directly to the tube surface for maximum bond strength and reliability in high-temperature, high-pressure service.
5. Embedded Finned Tubes: Fins embedded into a groove cut into the tube wall. Excellent contact resistance and suitable for elevated temperature applications.

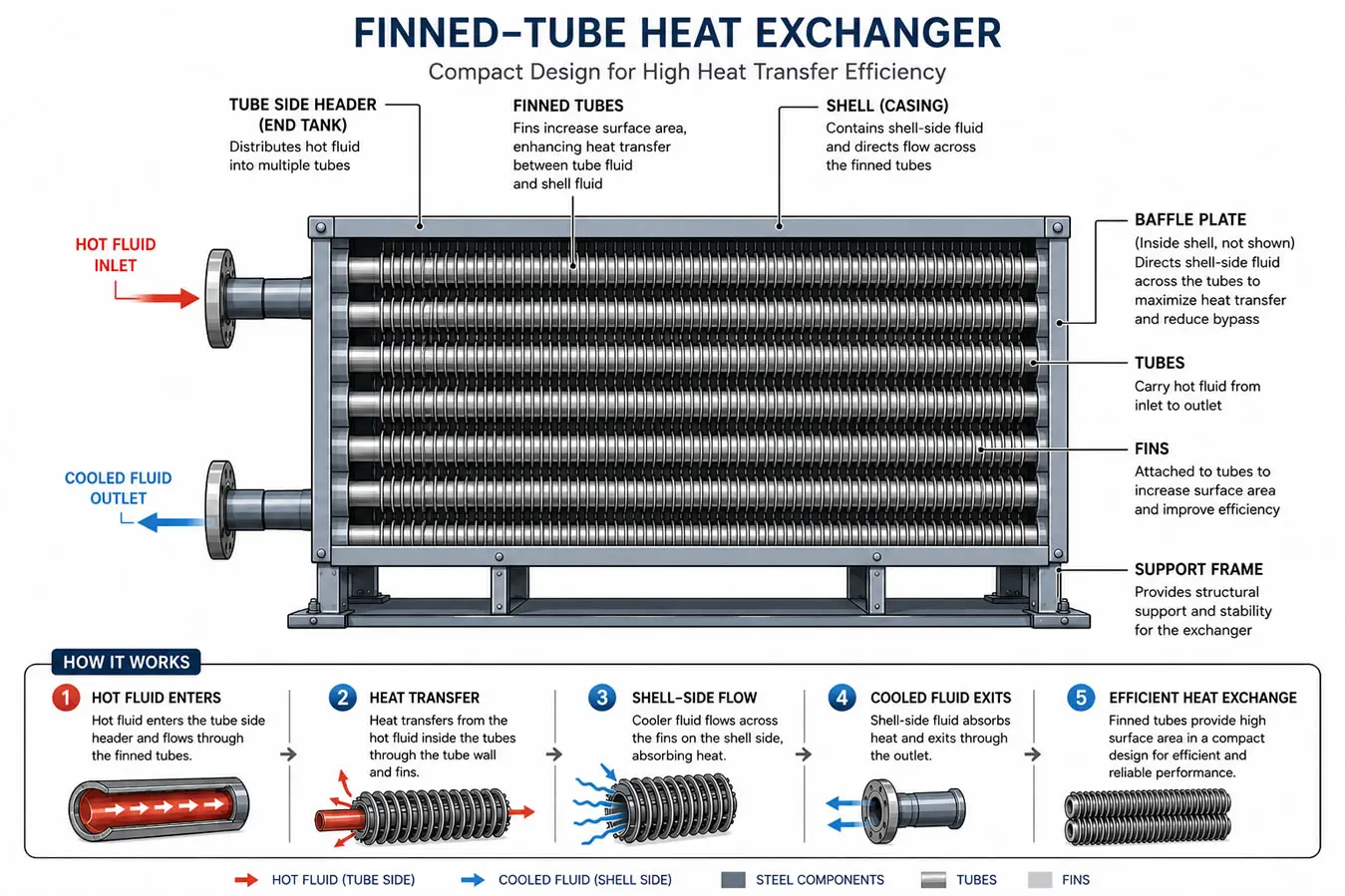

How Does a Finned Tube Heat Exchangers Work?

A finned tube heat exchanger transfers heat between a fluid inside the tube and a gas — usually air — flowing across the outside. The fins bonded to the tube exterior dramatically increase the contact surface area available for heat transfer, compensating for air's naturally poor heat absorption compared to liquids.

• Hot fluid enters the tube from one end and flows through continuously.
• Fins conduct heat outward from the tube wall into the surrounding airstream.
• Airflow across the fins — either forced by fans or natural convection — carries the heat away.
• Cooled fluid exits at the outlet end at the required process temperature.
• Fin density and geometry are engineered to balance heat transfer efficiency against air-side pressure drop.

Materials of Construction

Material selection for finned tube heat exchangers depends on the process fluid chemistry, operating temperature, and the surrounding environment. United Cooling Systems offers a wide range of tube and fin material combinations to match every application requirement precisely.

• Carbon Steel Tubes: A standard choice for steam, hydrocarbon, and general process fluid services at moderate temperatures and pressures.
• Stainless Steel 304/316 Tubes: Selected for corrosive fluids, pharmaceuticals, food processing, and marine service where hygiene and corrosion resistance are mandatory.
• Copper Tubes: Excellent thermal conductivity — widely used in HVAC, refrigeration, and domestic hot water applications.
• Titanium Tubes: Maximum corrosion resistance for seawater cooling and aggressive chemical process streams.
• Aluminium Fins: The most common fin material — lightweight, excellent thermal conductivity, and cost-effective for air-side heat transfer across all tube materials.
• Copper Fins: Used in high-performance HVAC and refrigeration units where superior fin conductivity is required.
• G-Finned, L-Finned, and Embedded Fins: The bonding method is selected based on operating temperature — embedded fins for high-temperature service and L-foot and G-type for moderate-temperature applications.

Applications of Finned Tube Heat Exchangers

Finned tube heat exchangers are highly efficient where heating of a liquid and gas occurs, specifically in air heat exchangers. Applications with lower heat transfer coefficients on the air side will benefit the most from the unique design since fins will greatly increase the surface area and assist with heat transfer.

Common Uses Include:

• Finned tubes in air conditioning systems allow for cooling of air by extracting heat from refrigerants thus ensuring best indoor climates.
• Automotive radiators also make use of in-car radiators called finned tubes which gets rid of heat from the engine coolant and helps to maintain optimum engine temperature and performance.
• Commercial Applications: Finned tubes are well utilized in industrial heat exchangers. They also enhance the efficiency of systems where heat exchange quickness is critical.

Benefits Of Finned Tube Heat Exchangers

Finned tube heat exchangers help with plenty of efficiency and performance advantages:

1. Better Efficiency Of Heat Transfer

   The increased surface area due to the addition of fins makes the process of heating or cooling more efficient. This helps with faster cooling or heating as needed based on the application.

2. Better Coefficient of Heat Transfer

   The effectiveness of the heat transfer coefficient in the finned tube is specifically designed to be better than normal tubes. Unlike normal tubes, where the outer area is similar to the inner surface area, finned tubes have their outside area maximized, which assists fluids with smaller heat transfer coefficients.

3. Multiple Design Customization

   Finned tubes are available in different shapes, enabling them to be adjusted to specific requirements and broadening their usability in many industries.

4. Space Saving

   Finned tubes make effective use of space due to their compact structure, thus suiting most installations that are space-sensitive while offering high heat transfer rates.

Why Choose United Cooling Systems for Finned Tube Heat Exchangers?

United Cooling Systems Pvt. Ltd. , is a trusted finned tube heat exchanger manufacturer supplying custom-engineered units to oil and gas, power generation, petrochemical, and HVAC industries across India and internationally.

• Custom Engineering: Every finned tube heat exchanger is designed to your specific heat duty, fluid properties, airflow conditions, and site constraints — not off-the-shelf catalogue sizes.
• Full Material Range: Carbon steel, stainless steel, copper, titanium, and duplex stainless tube options with aluminium or copper fins across all bonding methods.
• ASME and TEMA Certified: Manufacturing to internationally recognised pressure vessel and heat exchanger standards with full material traceability and third-party inspection capability.
• Forced and Natural Draft Configurations: A-frame, vertical, and horizontal setups designed to meet your performance and plot area needs.
• Pan-India Delivery: Reliable manufacturing and delivery timelines to refineries, power plants, and process facilities across the country with export capability.
• After-Sales Support: Technical support for installation, commissioning, and scheduled maintenance to keep your finned tube heat exchanger performing at design efficiency throughout its service life.

Frequently Asked Questions (FAQ)

1. What is a finned tube heat exchanger?

A finned tube heat exchanger is a device where two fluids are separated by a tube fitted with external fins. The fins increase the tube's surface area, allowing more efficient heat transfer between the fluid inside the tube and the medium—usually air—flowing around it.

2. Why are fins used in heat exchangers?

Fins are added to heat exchangers because they significantly increase the available surface area for heat exchange. This is especially useful when one of the two fluids — typically air — has a lower heat transfer coefficient than the fluid inside the tube, so the extra surface area compensates for that difference.

3. What is fin tube heating?

Fin tube heating refers to the process of transferring heat through a fluid-carrying tube fitted with external fins. The fins provide additional surface area around the tube, allowing heat to be absorbed or released more efficiently than with a bare tube of the same size.

4. What is the working principle of a finned tube heat exchanger?

A finned tube heat exchanger works by passing a hot fluid through the inside of the tube while air or another cooling medium flows across the outside. Heat is conducted from the fluid through the tube wall into the fins and then carried away by the surrounding air. The physical separation between the two fluids allows efficient heat exchange without direct mixing.

5. Which fin type is best for high-temperature applications?

Extruded and welded fin types offer the strongest bond between fin and tube, making them the preferred choice for high-temperature and high-pressure service. Embedded fins are also well suited to elevated temperatures due to their low contact resistance, while spiral and serrated fins are more commonly used in moderate-temperature air-cooling applications.

6. What materials are used in finned tube heat exchangers?

Tubes are commonly made from carbon steel, stainless steel (SS304/SS316), copper, or titanium, depending on the process fluid and corrosion requirements. Fins are typically aluminum or copper for their high thermal conductivity, though stainless steel and carbon steel fins are used in more demanding environments.

7. How do you maintain a finned tube heat exchanger?

Regular fin cleaning is essential, since dust and debris accumulation on the fin surface reduces airflow and heat transfer efficiency. Periodic inspection of tube-to-fin bonding, corrosion checks at fin edges, and monitoring for pressure drop across the unit help catch performance issues before they require major repair.

Conclusion

In residential and industrial settings, finned tube heat exchangers play an important role in improving thermal efficiency. Their systems provide unmatched value since they increase the heat transfer rate within a system and improve performance. For effective and dependable thermal management, choose the finned tube heat exchangers.
