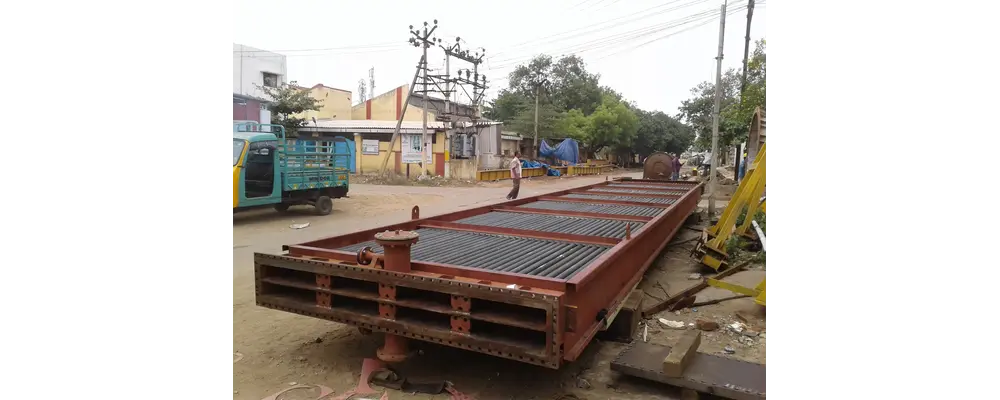

Air Cooler Header Box
Overview
When it comes to industrial and residential cooling systems, the smallest components often carry the greatest responsibility. The
air cooler header box is one such component — a critical part of your air-cooling infrastructure that determines how efficiently your entire system distributes and manages airflow. Engineered for precision, built for durability, and designed to perform under pressure, our Air Cooler Header Box is the backbone of any high-performance cooling assembly.
Whether you are operating in a demanding industrial environment, managing large-scale HVAC installations, or looking for a reliable solution for your commercial cooling requirements, this header box delivers unmatched performance, structural integrity, and thermal efficiency. Every unit is manufactured to exacting standards, ensuring that your cooling system runs at its optimal capacity day after day, season after season.
What Is an Air Cooler Header Box?
An air cooler header box, also known as a header manifold or distribution box, is a sealed chamber attached to the ends of the tube bundle in an air-cooled heat exchanger. Its primary function is to receive, distribute, and collect the process fluid — whether that is water, glycol, oil, or any other heat transfer medium — across the cooling tubes with precision and uniformity.
In simpler terms, the header box acts as the entry and exit point for the fluid that runs through your air cooler. It ensures that fluid is distributed evenly across all tubes, maximising the surface area available for heat transfer and eliminating hotspots that can lead to premature component failure. Without a well-engineered header box, even the most advanced cooling system can underperform significantly.
Our header boxes are fabricated from premium-grade materials and are available in a range of configurations to suit plug-in, removable bundle, and fixed bundle air cooler designs. Whether your system requires single-pass or multi-pass fluid flow, our header boxes are engineered to match your exact specifications.
Key Features
Heavy-Duty Construction
Our air cooler header boxes are manufactured from high-grade carbon steel, stainless steel, or alloy materials, depending on the application requirements. The robust construction ensures that the header box withstands extreme operating pressures and temperatures without warping, cracking, or leaking. Weld integrity is maintained through rigorous quality inspections and non-destructive testing (NDT) at every stage of production.
Precision-Engineered Tube Sheet Integration
The tube sheet forms the connection point between the header box and the tube bundle. Our header boxes feature precision-drilled tube sheets that ensure a perfect seal at every tube joint, eliminating the risk of fluid bypass or cross-contamination between passes. Tube sheets are available in various thicknesses and materials to accommodate different pressure ratings and fluid compatibility requirements.
Versatile Pass Configurations
Depending on your thermal design requirements, our header boxes are available in single-pass, two-pass, three-pass, and multi-pass configurations. Each pass partition divides the fluid flow inside the header box, increasing the number of times the fluid travels across the tube bundle. This significantly enhances heat transfer efficiency without requiring additional equipment or footprint.
Nozzle and Connection Flexibility
We understand that every installation is unique. That is why our air cooler header boxes come with customisable nozzle sizes, orientations, and flange ratings. Whether you need ANSI, DIN, or JIS standard flanges, or require specific nozzle placements to suit your piping layout, we accommodate every configuration. Vent, drain, and inspection plug connections are also available as standard or optional additions.
Corrosion and Erosion Resistance
Process fluids can be highly corrosive, and the internal surfaces of a header box are constantly exposed to these fluids under pressure. Our header boxes are available with internal epoxy coatings or galvanising or can be manufactured from corrosion-resistant alloys such as duplex stainless steel, Inconel, or titanium-clad carbon steel. This ensures an extended service life even in the most chemically aggressive environments.
Removable Cover Plates
For ease of maintenance and inspection, our header boxes feature bolted, removable cover plates. This allows maintenance teams to access the tube ends, inspect for fouling or scaling, and perform tube plugging or replacement without dismantling the entire unit. The gasketed cover plate design ensures a leak-free seal while still offering straightforward access.
Thermal Expansion Compensation
Temperature fluctuations during operation cause materials to expand and contract. Our header boxes are designed with appropriate allowances for thermal expansion, ensuring that joints and connections remain tight and leak-free across the full operating temperature range. Expansion joints and flexible connections are available for extreme thermal cycling applications.
Pressure-Tested and Certified
Every air cooler header box leaves our facility only after passing stringent hydrostatic pressure testing at 1.5 times the design pressure. All units are supplied with full material traceability documentation, mill certificates, pressure test reports, and third-party inspection certificates upon request. We comply with internationally recognised standards, including ASME, API, PED, and TEMA.
Materials of Construction
Selecting the right material for your header box is critical to long-term performance and reliability. We offer a comprehensive range of material options to suit every operating condition:
Carbon Steel (A516 Gr. 60/70):
Ideal for standard temperature and pressure applications with non-corrosive fluids. Cost-effective and widely used in oil and gas, power generation, and general industrial applications.
Stainless Steel (SS304, SS316, SS316L):
Offers excellent corrosion resistance for applications involving mildly aggressive fluids, high-humidity environments, or food-grade process requirements.
Duplex Stainless Steel (2205, 2507):
Provides superior strength and resistance to pitting, crevice corrosion, and stress corrosion cracking, making it suitable for chloride-rich environments and seawater cooling applications.
Alloy Steel (Chrome-Moly P11, P22, P91):
Designed for high-temperature, high-pressure applications such as steam systems, refineries, and petrochemical plants.
Copper Alloys and Brass:
Available for specific applications where copper alloys offer process compatibility advantages.
Titanium and Exotic Alloys:
For the most demanding chemical processing, offshore, and pharmaceutical applications where no compromise on corrosion resistance is acceptable.
Applications
The air cooler header box finds application across an exceptionally wide range of industries and processes. Its versatility and robust design make it suitable for virtually any environment where controlled heat rejection via air-cooled systems is required.
Oil and Gas Industry:
Upstream, midstream, and downstream facilities use air-cooled heat exchangers extensively for cooling process gases, crude oil, refined products, and compressor discharge streams. Header boxes in these applications are engineered to handle high-pressure, high-temperature hydrocarbons safely and reliably.
Petrochemical and Refinery Plants:
Refineries depend on air-cooled exchangers for condensing overhead vapours, cooling reactor effluents, and managing heat loads across complex process trains. Our header boxes meet API 661 standards for air-cooled heat exchangers used in petroleum, petrochemical, and natural gas industries.
Power Generation:
Cooling tower alternatives and direct dry cooling systems in power plants rely on header boxes that can handle large volumes of water or steam condensate. Our units are designed for the high-reliability requirements of power generation infrastructure.
Compressor Cooling:
Gas compression generates significant heat that must be efficiently removed to maintain compressor performance and protect mechanical components. Air cooler header boxes used in compressor aftercooler and intercooler applications are built to handle pulsating pressure conditions.
Chemical Processing:
Chemical plants handle a broad spectrum of corrosive and reactive fluids. Our header boxes are engineered with appropriate materials and coatings to ensure chemical compatibility and long service life.
HVAC and Commercial Cooling:
Large commercial buildings, data centres, and district cooling systems use air-cooled equipment where header boxes form a critical part of the chilled water distribution system.
Marine and Offshore Platforms:
Offshore oil platforms and marine vessels operate in some of the harshest environments on earth. Our header boxes for these applications are manufactured from corrosion-resistant materials and designed to meet offshore structural and safety standards.
Design Standards and Compliance
Our air cooler header boxes are engineered and manufactured in strict accordance with internationally recognised codes and standards:
- API 661 – Air-Cooled Heat Exchangers for General Refinery Service
- ASME Section VIII Division 1 – Pressure Vessel Code
- TEMA – Tubular Exchanger Manufacturers Association Standards
- PED 2014/68/EU – Pressure Equipment Directive (for European markets)
- ASME B31.3 – Process Piping (for nozzle connections)
- AWS D1.1 – Structural Welding Code for fabrication quality
Third-party inspection and certification by agencies such as Lloyd's Register, Bureau Veritas, TÜV, and SGS are available upon request, ensuring full compliance with project-specific requirements.
Customisation and Engineering Support
No two cooling systems are identical, and we recognise that a one-size-fits-all approach simply does not work for critical process equipment. Our experienced engineering team works closely with you from the initial design phase through to final delivery, providing:
Thermal and Mechanical Design:
Our engineers use advanced simulation tools to optimize the header box geometry, pass configuration, and nozzle sizing to match your precise thermal and hydraulic requirements.
3D Modelling and Fabrication Drawings:
All custom header boxes are developed using industry-standard 3D CAD software. Detailed fabrication drawings and as-built documentation are provided with every order.
Material Consultation:
Our metallurgists assist in selecting the most appropriate material for your specific process fluid, operating temperature, pressure, and corrosion conditions.
Retrofit and Replacement Solutions:
If you are replacing an existing header box or upgrading an ageing air cooler, our team can reverse-engineer your existing unit and provide a direct drop-in replacement with improved design features.
Site Installation Support:
We offer technical advisory services for installation, commissioning, and first startup to ensure your header box is correctly integrated into your cooling system.
Why Choose Our Air Cooler Header Box?
In a market filled with options, choosing the right manufacturer for your critical cooling components is a decision that carries long-term consequences for your operation. Here is why leading industries across the globe trust us:
Decades of Manufacturing Expertise:
With a long-standing history of fabricating pressure vessels and heat exchanger components, our team brings deep technical knowledge and hands-on experience to every project.
Uncompromising Quality Control:
Our manufacturing facility operates under a rigorous quality management system certified to ISO 9001. Every weld, every dimension, and every pressure test is documented and traceable.
Fast Turnaround and On-Time Delivery:
We understand the cost of downtime in your operation. Our streamlined production process and well-stocked material inventory allow us to meet demanding delivery schedules without compromising quality.
Competitive Pricing:
We offer premium-quality header boxes at competitive prices because we believe that reliability should not come at an unreasonable premium. Request a quote today and experience the value we bring to every project.
Global Supply Capability:
We have successfully supplied header boxes and air cooler components to projects across Asia, the Middle East, Europe, Africa, and the Americas. Our export documentation, crating, and logistics support ensure your equipment arrives safely wherever it is needed.
Dedicated After-Sales Support:
Our relationship with customers does not end at delivery. Our technical support team is available to assist with installation questions, operational troubleshooting, and future replacement needs throughout the service life of your equipment.
Technical Specifications (Standard Range)
| Parameter |
Specification |
| Design Pressure |
Up to 100 bar (higher on request) |
| Design Temperature |
-50°C to +450°C |
| Tube Sheet Thickness |
20mm to 150mm |
| Nozzle Size Range |
DN25 to DN600 |
| Pass Configuration |
1 to 6 passes |
| Flange Standards |
ANSI, DIN, JIS |
| Surface Treatment |
Painting, epoxy lining, hot-dip galvanizing |
| Testing |
Hydrostatic, pneumatic, radiographic (NDT) |
Get a Quote Today
Your cooling system deserves components that are built to last, engineered to perform, and backed by a team that stands behind their work. Our air cooler header boxes are ready to be customized to your exact specifications and delivered to your site on schedule.
Contact our sales engineering team today with your process data sheet, design conditions, or existing equipment drawings. We will respond with a detailed technical proposal and competitive quotation within 48 hours.
Call us. Email us. Send us your specs. We are ready to build what your system needs.
All specifications are subject to engineering review and confirmation based on final process conditions. Custom designs available on request.
