Air-Cooled Condenser: The Complete Engineering Guide for Modern Refrigeration Systems
An air-cooled condenser is one of the most critical components in any refrigeration or HVAC system — yet it's often the most overlooked. Whether you're a refrigeration engineer, procurement specialist, or system designer, understanding how these components work, what they're made of, and where they're applied can significantly impact your system's efficiency, lifespan, and total cost of ownership.
This guide walks you through everything you need to know — from materials and working principles to specific applications across commercial, marine, and industrial refrigeration.
What Is an Air-Cooled Condenser? Understanding Its Core Function
An air-Cooled Condenser is a heat exchange device used in refrigeration and HVAC systems to reject heat from a refrigerant to the surrounding ambient air. It receives high-pressure, high-temperature refrigerant vapor from the compressor, removes heat through a network of fins and tubes, and converts that vapor into a high-pressure liquid ready for the next stage of the refrigeration cycle.
Unlike water-cooled condensers that rely on water circuits, air-cooled condensers use moving air — either forced (via fans) or natural convection — as the cooling medium. This makes them ideal for locations where water availability is limited, operational costs must be minimized, or installation simplicity is a priority.
They are widely used in supermarkets, cold storage units, marine vessels, rooftop HVAC systems, and condensing units across the globe.

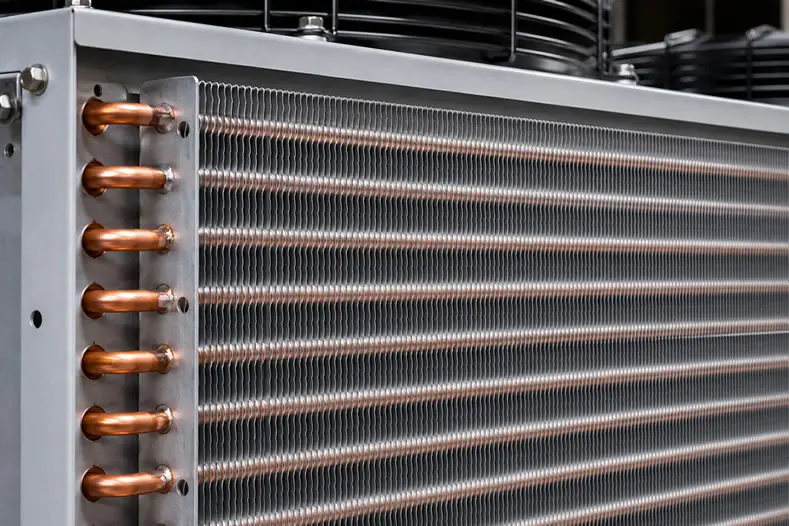

Fin Materials in Air-Cooled Condensers: What Actually Drives Heat Transfer
The fins in an air-cooled condenser are thin, closely spaced plates attached to refrigerant-carrying tubes. Their job is to massively increase the surface area available for heat exchange between the refrigerant and the passing air. The choice of fin material directly influences corrosion resistance, thermal efficiency, weight, and long-term durability.
Which Fin Materials Are Used — and When to Choose Each
- Aluminum Fins are the most widely adopted choice in standard commercial and industrial condensers. Aluminum offers an excellent strength-to-weight ratio, high thermal conductivity, ease of forming into complex fin geometries, and strong cost efficiency. It performs reliably in most indoor and temperature-controlled outdoor environments.
- Copper Finsdeliver superior thermal conductivity compared to aluminum and are preferred in high-performance, compact systems where maximum heat transfer in minimum space is essential. However, copper's higher cost and weight make it less common in large-scale commercial setups.
- Hydrophilic Coated Aluminum Finsare aluminum fins treated with a special surface coating that improves water drainage and resists dust adhesion. These are particularly valuable in humid climates or coastal environments where moisture management affects efficiency.
- Epoxy-Coated Fins provide an additional protective barrier against corrosive environments — especially useful in marine refrigeration, chemical plants, or coastal installations where salt air and chemicals would rapidly degrade uncoated metals.
- Copper-Aluminum Composite Fins combine the conductivity advantages of copper in the tube zone with the lightweight cost-effectiveness of aluminum for the broader fin surface, offering a balanced solution for mid-range performance needs.
Fin Material Selection Guide: Side-by-Side Comparison
| Fin Material | Thermal Conductivity | Corrosion Resistance | Weight | Relative Cost | Best Application |
|---|---|---|---|---|---|
| Standard Aluminum | High | Moderate | Light | $ Low | Standard commercial & indoor HVAC |
| Copper | Very High | Moderate | Heavy | $$$ High | Compact high-performance systems |
| Hydrophilic Coated Aluminum | High | Good (moisture) | Light | $$ Medium | Humid & coastal climates |
| Epoxy-Coated Aluminum | High | Excellent | Light | $$ Medium | Marine, chemical & salt-air environments |
| Copper-Aluminum Composite | Very High | Good | Medium | $$$ Medium-High | Mid-range performance & mixed environments |
Types of Fin Geometry: Flat, Corrugated, and Louvered
Beyond material, fin geometry also plays a major role in performance. Flat fins offer the lowest airflow resistance and are easy to clean. Corrugated fins improve turbulence and heat transfer at the cost of slightly higher pressure drop. Louvered fins — the current industry standard in high-performance condensers — use angled cuts across the fin surface to repeatedly restart the thermal boundary layer, dramatically improving heat transfer coefficients. Most modern air-cooled condensers use louvered aluminum fins for this reason.
Internally Threaded Copper Tubing: The Hidden Factor in Condenser Efficiency
While fins handle the air side of heat exchange, the refrigerant side depends heavily on tube quality. Internally threaded (also called micro-fin) copper tubing has become the preferred tube design in high-efficiency air-cooled condensers.
Why Internally Threaded Copper Tubing Outperforms Smooth Bore
The helical grooves machined into the inner wall of the tube serve multiple functions simultaneously:
- Increased Internal Surface Area:The threading increases the effective surface area inside the tube by 50–70% compared to smooth bore tubes, providing significantly more contact area for refrigerant-to-tube heat transfer.
- Enhanced Turbulence: The grooves disrupt laminar refrigerant flow, creating controlled turbulence that continuously brings fresh refrigerant into contact with the tube wall, accelerating heat transfer.
- Improved Condensation Film Drainage: During condensation, the refrigerant tends to form a film on tube walls that acts as thermal resistance. The micro-fin grooves break up and drain this film more effectively, keeping tube walls in direct contact with vapor.
- Size and Weight Reduction: Because of improved efficiency, systems using internally threaded tubes can achieve the same capacity with smaller, lighter condensers — reducing both material cost and installation footprint.
For these reasons, internally threaded copper tubing has become the global benchmark for quality air-cooled condensers in commercial and industrial refrigeration.
How an Air-Cooled Condenser Actually Works: The Thermodynamic Process Explained
The operating principle of an air-cooled condenser follows the basic refrigeration cycle, but understanding each phase helps explain why design choices matter.
- Stage 1 — Superheated Vapor Entry:Hot, high-pressure refrigerant vapor exits the compressor and enters the condenser in a superheated state — meaning its temperature is above its condensation point at that pressure.
- Stage 2 — De-Superheating: In the first portion of the condenser coil, air flowing across the fins removes the excess superheat, bringing the refrigerant to its saturation temperature. This section handles sensible heat removal.
- Stage 3 — Condensation: The refrigerant begins converting from vapor to liquid at constant temperature and pressure. This is where the bulk of latent heat is released — typically 70–80% of total condenser heat rejection occurs here.
- Stage 4 — Sub-Cooling: In the final coil section, the now-liquid refrigerant is cooled slightly below its saturation temperature. Sub-cooling improves system efficiency by preventing flash gas formation in the liquid line and ensuring a full liquid feed to the expansion device.
- Airflow Volume (CFM/CMH): The fan must deliver sufficient airflow across the entire coil face. Undersized fans create uneven heat distribution, hot spots, and reduced capacity.
- Fan Blade Design: Blade pitch, diameter, and number of blades all influence airflow efficiency and noise levels. High-efficiency fan blades can reduce power consumption by 15–25% compared to standard designs.
- Motor Protection: IP-rated (ingress protection) motor enclosures protect against moisture, dust, and insects — especially critical in outdoor condensing unit and marine applications.
- EC vs. PSC Motors: Electronically commutated (EC) fan motors offer variable speed capability, allowing the system to modulate airflow based on actual heat rejection demand rather than running at full speed continuously. This delivers significant energy savings — particularly in commercial refrigeration where ambient temperatures vary widely across seasons.
- Mounting and Vibration: Proper mounting brackets with vibration isolation protect both the motor and the condenser coil from long-term fatigue and noise generation.
- Zero Water Dependency — Eliminates costly water treatment systems entirely.
- Lower Installation Cost — No cooling towers, pumps, or pipework required.
- Minimal Maintenance — Fewer components mean significantly reduced servicing time and expense.
- Flexible Placement — Installs easily on rooftops, outdoors, or inside machine rooms.
- Fast Commissioning — Simplified design ensures quicker startup, saving valuable installation time.
Throughout this entire process, condenser fans continuously drive ambient air across the fin-and-tube surface, carrying away rejected heat. The temperature difference between the refrigerant and the ambient air — known as the approach temperature — is the primary driver of condenser sizing and selection.
Air-Cooled Condenser Applications: Matching the Right Design to the Right System
Not all air-cooled condensers are the same. System requirements, operating environments, and refrigerant types all influence the correct condenser specification.

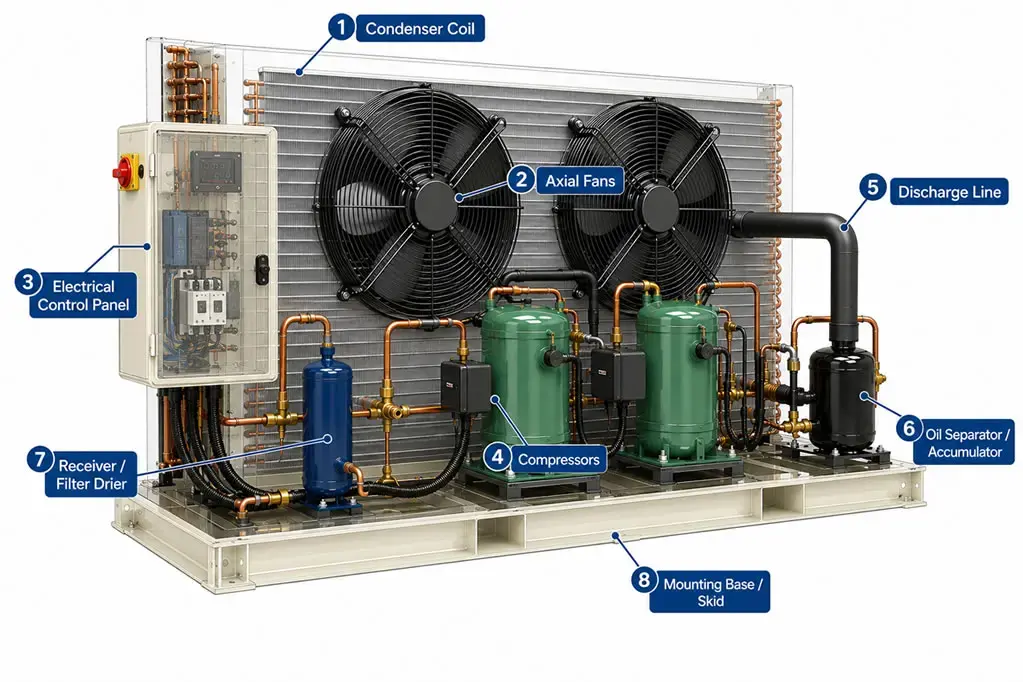

1. Air-Cooled Condensers for Condensing Units
Condensing units — which package the compressor, condenser, and fan motor together — are the workhorse of light commercial refrigeration. The condensers in these units are designed for tight integration, reliable fan motor mounting, and compatibility with common refrigerants like R-404A, R-448A, and R-452A. Compact coil designs with multi-row louvered aluminum fins over internally threaded copper tubes are standard in this segment.
2. Air-Cooled Condensers for Commercial Refrigeration
Supermarkets, convenience stores, restaurants, and food processing facilities demand condensers that can handle continuous high-duty cycles, variable ambient temperatures, and strict food safety temperature requirements. These condensers are often larger, use robust coil frames, and are designed for easy maintenance access and coil cleaning — essential in food service environments where grease and particulate buildup are constant challenges.
3. Air-Cooled Condensers for Marine Refrigeration
Marine environments present extreme challenges: salt air corrosion, constant vibration, high humidity, and limited ventilation. Marine-grade air-cooled condensers use epoxy-coated fins, corrosion-resistant frame materials, reinforced mounting structures, and vibration-dampening components. Compact footprints and high reliability under variable load conditions are non-negotiable in shipboard refrigeration applications.
4. Air-Cooled Condensers for Walk-In Cooler Condensing Units
Walk-in coolers and freezers for restaurants, grocery stores, and cold storage facilities require condensers that work reliably across wide ambient temperature ranges while maintaining precise compartment temperatures. These systems often use remote-mounted condensers (placed outdoors or in machine rooms) to keep heat away from conditioned spaces, and they are sized to perform adequately even on even in extreme summer heat conditions where high ambient temperatures directly impact condenser efficiency and system reliability.
Air-Cooled Condenser with Integrated Fan Motor: Why the Fan System Is Not an Afterthought
The condenser fan motor is not simply an accessory — it is a primary determinant of system performance and energy consumption. Matching the right fan motor to the condenser coil is essential.
A well-matched fan motor integrated with a high-quality fin-and-tube coil is what separates a high-performing, energy-efficient air-cooled condenser from an undersized, energy-wasting unit that struggles at peak load.v
Final Takeaway
Air-cooled condensers are precision-engineered components that directly determine system efficiency, reliability, and operating cost. From fin material selection and tube geometry to application-specific design and fan motor integration, every decision compounds over the life of the system. Choosing a manufacturer with deep engineering expertise and verified quality standards ensures your refrigeration system performs when it matters most — in the heat of peak demand.
Expert Answers to the Most Common Air-Cooled Condenser Questions
1. How Does an Air-Cooled Condenser Work in a Refrigeration System?
An air-cooled condenser transfers heat from refrigerant vapor into ambient air using fin-and-tube coils and motorized fans — no water needed.
2. What Makes Air-Cooled Condensers a Smart Choice? 5 Real Engineering Advantages
3.What Are the Three Main Types of Condensers Used in Refrigeration?
The three types are air-cooled, water-cooled, and evaporative condensers — each suited for different capacity, environment, and efficiency requirements.
4. What Role Does an Air-Cooled Condenser Play in a Chiller System?
It expels building heat into the atmosphere through finned coils and fans — perfect for hospitals, offices, and data centers.
