Spiral Heat Exchanger: Design, Working, and Industrial Applications

In industrial heat transfer, engineers constantly seek equipment that delivers maximum efficiency while handling challenging process conditions. The spiral heat exchanger stands out as one of the most innovative and reliable solutions for demanding thermal management applications.

At United Cooling Systems Private Limited, we manufacture and supply high-performance spiral heat exchangers engineered to deliver consistent results across a wide range of industries.

What Is a Spiral Heat Exchanger?

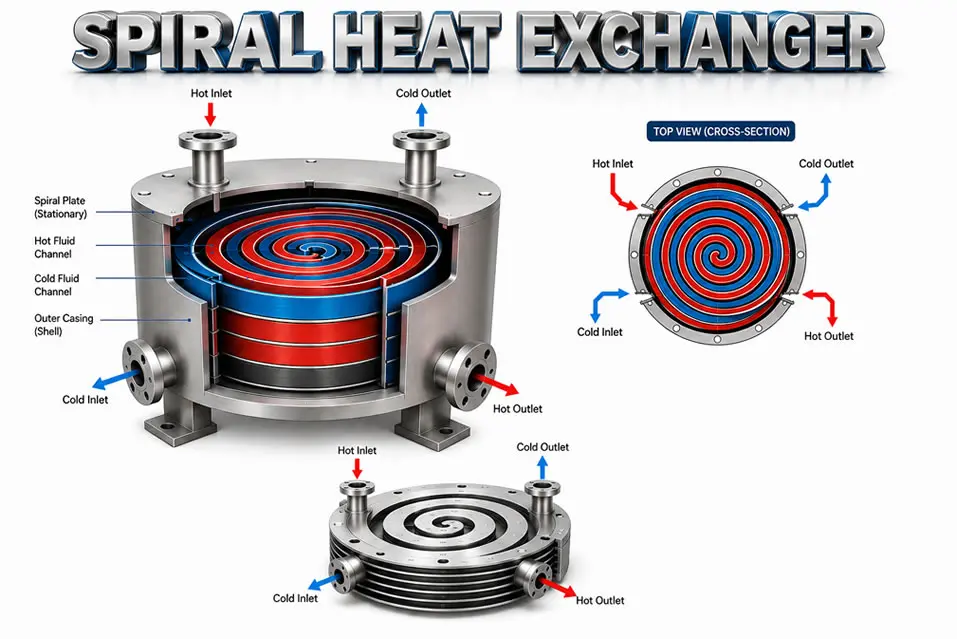

A spiral heat exchanger is a compact, highly efficient heat transfer device built from two long metal strips rolled into a spiral configuration around a central core. This creates two separate spiral channels — one for each fluid — running in a continuous curved path from the center to the outer edge. Unlike shell and tube heat exchangers, the spiral design forces both fluids into a curved flow path, generating powerful centrifugal forces and high turbulence even at low flow velocities. The two fluid streams are completely separated by spiral plate walls, ensuring zero cross-contamination during operation.

How Does It Work?

A spiral heat exchanger operates on a simple but highly effective flow principle:

1. Center-to-Edge Flow : One fluid enters at the center of the spiral and travels outward toward the shell.
2. Edge-to-Center Flow : The second fluid enters at the outer edge and travels inward toward the center.
3. True Countercurrent Flow : This opposing flow pattern creates a true countercurrent arrangement—thermodynamically the most efficient heat transfer configuration possible.
4. Continuous Heat Transfer : As both fluids move through their spiral channels, heat transfers continuously through the thin metal plate separating them.
5. Self-Refreshing Turbulence : The curved path generates turbulence that constantly refreshes the boundary layer, preventing the stagnant zones that reduce efficiency in straight-flow designs.
6. High Thermal Performance : The result is an extremely high overall heat transfer coefficient and close temperature approaches—making spiral exchangers ideal for heat recovery applications.

Key Design Features

• Single Flow Channel Per Fluid — No bypassing, no dead zones. Every fluid molecule travels the full heat transfer surface length for maximum thermal contact.
• Self-Cleaning Turbulent Flow — High turbulence continuously scours the surface, preventing fouling — especially valuable when handling slurries, fibrous materials, or viscous fluids.
• Compact Footprint — Packs a large heat transfer surface area into a small physical volume, requiring significantly less installation space than shell and tube units.
• Full Counter-Current Flow — Maximizes the log mean temperature difference, delivering the highest thermal driving force throughout the exchanger.
• Easy Maintenance Access — Removable covers on both ends allow full access to both channels without dismantling the unit.

Technical Specifications

Custom specifications available based on project requirements. Contact our team for a project-specific datasheet.

Materials Selection Guide

Spiral heat exchangers are available in a range of materials to suit different fluid chemistries, temperatures, and pressure conditions. Use this guide to match construction material to your application.

• Carbon Steel — The standard, cost-effective choice for non-corrosive fluids and general industrial duty where aggressive chemistry isn't a concern.
• SS 304 — Suitable for mildly corrosive process fluids and general chemical, food, and beverage applications requiring good hygiene standards.
• SS 316L — Recommended for more corrosive environments, chloride-containing fluids, and applications demanding higher purity, such as pharmaceutical and food processing.
• Duplex Stainless Steel — Selected for higher strength combined with excellent resistance to chloride stress corrosion cracking, often used in chemical and offshore applications.
• Titanium — The preferred choice for highly corrosive or chloride-rich fluids, including seawater and aggressive chemical processes, offering exceptional longevity despite higher cost.
• Hastelloy — Reserved for the most severe corrosive environments, such as strong acids and high-temperature chemical processing, where standard stainless steel would fail prematurely.

If you're unsure which material fits your fluid chemistry and operating conditions, our engineering team can review your process data and recommend the right specification.

Types of Spiral Heat Exchangers

• Type I — Spiral Flow on Both Sides — The most common configuration. Both fluids flow in a spiral path in opposite directions, achieving true counter-current flow. Ideal for liquid-to-liquid heat transfer, heating, cooling, and heat recovery.
• Type II — Spiral Flow and Cross Flow — One fluid flows spirally, while the second flows axially across the channels. Commonly used for condensing and evaporating duties.
• Type III — Combined Spiral and Cross Flow — Combines Type I and Type II for special process requirements involving two-phase flow or partial condensation duties.

Advantages of Spiral Heat Exchangers

• Outstanding Fouling Resistance — Single-channel design and high turbulence prevent fouling far more effectively than multi-tube designs.
• High Thermal Efficiency — Counter-current flow with high turbulence delivers superior heat transfer coefficients.
• Handles Difficult Fluids — Sludges, slurries, and highly viscous fluids process reliably without blocking.
• Low Pressure Drop — Smooth curved flow produces a relatively low pressure drop despite high turbulence.
• Small Footprint — Requires considerably less floor space than conventional exchangers.
• Long Service Life — Robust construction and fouling resistance deliver decades of reliable operation.
• Excellent for Heat Recovery — Close temperature approach reduces energy consumption and operating costs.

Limitations to Consider

• Pressure Limitations — Standard units rated up to 25 bar; higher pressures require custom engineering.
• Temperature Limitations — Standard units operate up to 400°C depending on materials and gaskets.
• Repair Complexity — Plate repairs are more complex than plugging a tube in shell-and-tube designs.
• Not for All Fluids — Fluids that solidify or deposit hard scale rapidly may still cause operational challenges.

Spiral vs. Shell-and-Tube vs. Plate Heat Exchangers

Choosing the right heat exchanger type depends on fluid characteristics, fouling tendency, space constraints, and pressure requirements. The comparison below highlights how spiral heat exchangers stack up against the two most common alternatives.

In short: choose a spiral heat exchanger when fouling resistance and difficult fluids are the priority, a shell and tube heat exchanger when high pressure and temperature dominate the requirement, and a plate heat exchanger when space is limited and fluids are clean.

Industrial Applications

Maintenance and Cleaning

• Mechanical Cleaning — High-pressure water jetting along spiral channels dislodges accumulated deposits effectively.
• Chemical Cleaning — Circulating cleaning chemicals dissolves scale, biological fouling, and chemical deposits throughout the entire surface.
• Inspection — Visual inspection through open ends assesses plate, stud, and spacer condition. Ultrasonic thickness testing monitors corrosion over time.

Frequently Asked Questions

1. What is the main advantage over other exchanger types?

Outstanding fouling resistance. The single continuous channel and turbulent flow prevent deposit buildup, making it ideal for slurries, viscous fluids, and fibrous materials.

2. Can it handle high-pressure applications?

Standard units operate up to 25 bar. For higher pressures, shell and tube heat exchangers are generally more suitable

3. How is it cleaned?

Remove the bolted end covers to access both channels directly. High-pressure water jetting or chemical circulation removes fouling deposits without dismantling the unit.

4. What materials are available?

Carbon steel, SS 304, SS 316L, duplex stainless steel, titanium, Hastelloy, and Inconel are selected based on fluid chemistry, temperature, and pressure.

5. Which industries use them most?

Pulp and paper, wastewater treatment, chemical processing, food and beverage, steel manufacturing, and marine industries.
