Fin Tube Bundle
In industries where heat exchange plays a critical role, Fin Tube Bundles are essential components that ensure effective thermal management. Used in heat exchangers, condensers, and boilers, fin tube bundles enhance heat transfer efficiency and performance across various applications.
What is a Fin Tube Bundle?
A Fin Tube Bundle consists of multiple tubes, usually made from materials like copper, stainless steel, or aluminum, arranged in a bundle. These tubes have metal fins attached to them, which increase the surface area for heat exchange. The increased surface area allows for more efficient heat transfer from one medium to another, such as from a hot fluid to a cooler one.How Does a Fin Tube Bundle Work?

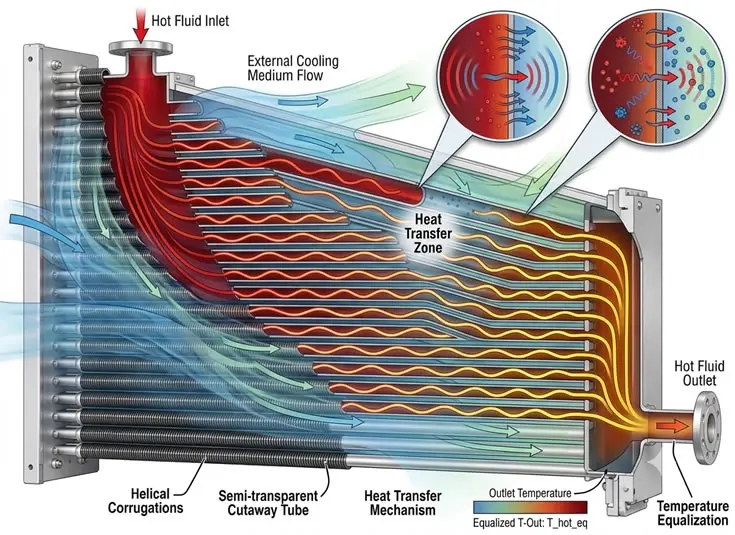

The primary function of a fin tube bundle is to enhance the heat exchange process.- Flow of Hot and Cold Fluids: A hot fluid, typically a gas or liquid, flows through the tubes of the bundle, while the cooler fluid flows over the surface of the fins.
- Heat Transfer: The metal fins attached to the tubes increase the surface area of the tube, allowing the cooler fluid to absorb more heat from the hot fluid. This process occurs through conduction (heat transfer within the material of the tube) and convection (heat transfer between the fluid and the surface of the tube or fin).
- Efficient Cooling: The fins help dissipate heat more effectively, ensuring that the hot fluid cools down rapidly, maintaining the system's thermal balance.
Fundamentals of Finned Tube Heat Transfer
Finned tube heat exchangers are designed to maximize heat transfer efficiency by increasing the heat transfer surface area between the fluid inside the tubes and the air or other cooling medium around them. Here’s an overview of the fundamental principles behind finned tube heat transfer:- Increased Surface Area: The primary mechanism for improving heat transfer in finned tube designs is the increased surface area provided by the fins. This larger surface area allows the heat exchange process to occur over a greater area, enabling better heat dissipation or absorption. The more surface area there is for the fluid to interact with, the faster the heat transfer will be.
- Convection Heat Transfer: Heat is transferred from the hot fluid inside the tube to the fins through conduction. Once the heat is in the fins, it is then transferred to the surrounding air or cooling fluid through convection. The air or fluid flows across the fins, absorbing the heat, and moving the warmer air away from the surface. This process ensures that the temperature of the tube remains lower and the heat is effectively carried away.
- Nusselt Number and Heat Transfer Coefficient: The Nusselt number is a dimensionless number used to determine the efficiency of heat transfer in finned tubes. It depends on factors like the flow type (laminar or turbulent), the fin density, and the thermal conductivity of the materials used. A higher Nusselt number corresponds to a more efficient heat exchange. The heat transfer coefficient is influenced by the Nusselt number and determines how effectively heat is transferred from the tube to the surrounding fluid.
- Fluid Flow Patterns: In finned tube bundles, the way fluid flows across the fins is crucial for optimizing heat transfer. Turbulent flow is more effective than laminar flow for heat transfer because it mixes the fluid, increasing the contact between the fluid and the surface. High turbulence enhances heat exchange efficiency by disrupting the boundary layer and facilitating heat transfer.
- Thermal Conductivity: The material of the tubes and fins, typically metals like copper, stainless steel, or aluminum, plays a key role in heat transfer. Metals with high thermal conductivity transfer heat more efficiently from the hot fluid inside the tube to the fins, enhancing the overall heat exchange process.
- Temperature Gradient: The temperature difference between the hot fluid inside the tube and the cooler fluid outside the tube (usually air or water) is one of the main driving forces for heat transfer. A higher temperature gradient results in faster heat transfer. However, it is important to balance the temperature difference to avoid stressing the materials or causing thermal damage to the system.
Heat Transfer for Boiling on Finned Tube Bundles
In applications where boiling is involved, such as in evaporators or steam generators, finned tube bundles play an important role in maximizing heat transfer. The primary mechanism for boiling heat transfer is the increased surface area provided by the finned tubes:- Increased Surface Area: The fins on the tubes allow more fluid contact, which speeds up the heat transfer process. In boiling applications, this allows for better latent heat transfer as the liquid transitions from a liquid state to a vapor state.
- Boiling Nucleation: The increased surface area encourages the formation of vapor bubbles at a faster rate, making the heat exchange process more efficient. This is particularly important in industries such as power generation, refrigeration, and HVAC, where high rates of heat exchange are necessary.
- Efficient Heat Absorption: By improving the heat absorption capacity, fin tube bundles help prevent overheating and system inefficiencies that could lead to equipment damage or failure.
Applications of Fin Tube Bundles
Fin tube bundles are widely used across various industries, including:
- Power Generation: In power plants, fin tube bundles are used in heat exchangers to cool down steam or fluids, ensuring efficient operation of turbines and other machinery.
- Oil & Gas Industry: These bundles are critical in separating heat from fluids, aiding in the efficient processing of oil, gas, and chemicals.
- HVAC Systems: In heating, ventilation, and air conditioning systems, fin tube bundles help manage heat exchange between the air and refrigerants, optimizing energy use.
- Food & Beverage: Fin tube bundles are used in cooling systems that process food and beverages, ensuring that production lines operate smoothly and without overheating.
Types of Fin Tube Bundles
- Straight Tube Bundle: The simplest design, featuring straight tubes and fins. Used in less complex systems.
- U-Tube Bundle: These bundles have U-shaped tubes, allowing for easier expansion and contraction under temperature changes, typically used in heat exchangers.
- Spiral Fin Tube Bundle: A more advanced design where fins are spiral-shaped, increasing surface area and improving heat transfer efficiency in high-performance systems.
