Surface Condensers for Power Plants & Industrial Applications

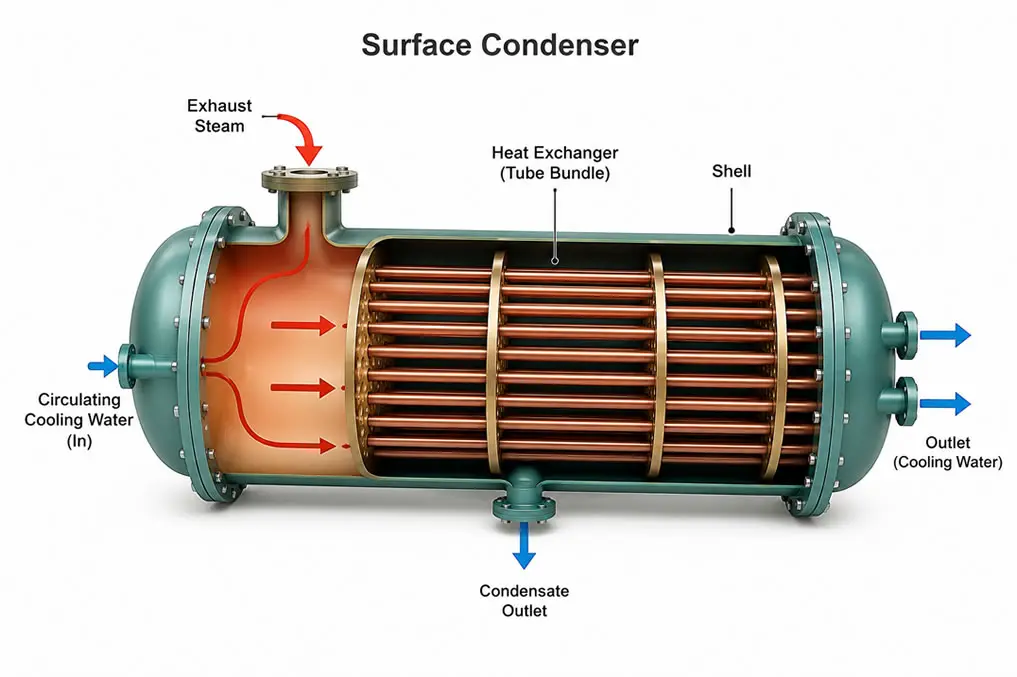

The working principle of a surface condenser is based on straightforward heat transfer physics, but the practical execution involves careful engineering to handle enormous steam volumes at very low pressures.

Exhaust steam leaving the low-pressure turbine enters the condenser shell, which is maintained under vacuum (typically around 0.05 to 0.1 bar absolute). Inside the shell, thousands of tubes carry cooling water pumped in from an external source. As the hot steam contacts the cooler tube surfaces, it loses its latent heat and condenses into liquid water on the outside of the tubes. This condensate collects at the bottom of the shell in what's called the hotwell, from which it is pumped back to the boiler feedwater system for reuse.

Several important mechanisms occur simultaneously during this process:

• Vacuum maintenance: Non-condensable gases (air and other gases that leak into the system or are carried in with the steam) must be continuously removed using air ejectors or vacuum pumps, since their accumulation would raise the condenser pressure and reduce efficiency.
• Subcooling control: The condensate is typically kept close to saturation temperature; excessive subcooling wastes energy, while insufficient subcooling can cause cavitation in the condensate extraction pumps.
• Flow arrangement: Cooling water usually flows through the tubes in one or two passes, entering at one end and exiting at the other, while steam flows transversely or downward across the tube bundle, guided by baffles and shell design to maximize contact time and heat transfer.

The efficiency of this entire process depends on maintaining a consistent temperature differential between the steam and the cooling water, keeping tube surfaces clean, and minimizing air ingress—all of which tie directly into the design and maintenance practices discussed later in this guide.

A surface condenser is a substantial piece of engineering, often standing several stories tall in large power plants and handling massive steam flow rates continuously for decades. Its construction reflects the demanding conditions it must withstand: high vacuum, large thermal loads, and continuous operation.

Key structural and functional components include:

• Shell — A large steel structure, typically rectangular or cylindrical, that houses the tube bundle and maintains the vacuum environment where steam condenses.
• Tube Bundle — Thousands of individual tubes, usually made from admiralty brass, stainless steel, titanium, or copper-nickel alloys, through which cooling water flows. Tube material selection depends heavily on the cooling water quality (freshwater vs. seawater) and its corrosive potential.
• Tube Sheets — Thick metal plates at each end of the shell that hold the tubes in place and separate the steam side from the water side.
• Water Boxes — Chambers at each end of the condenser that direct cooling water into and out of the tubes, often divided into compartments to allow single or multi-pass water flow.
• Hotwell — A collection reservoir at the bottom of the shell where condensed steam (condensate) gathers before being pumped back to the boiler feed system.
• Air Extraction System — Ejectors or vacuum pumps that continuously remove air and non-condensable gases to maintain the required vacuum level.
• Expansion Joints — Flexible connections that absorb thermal expansion and contraction between the condenser and the turbine exhaust, preventing mechanical stress.
• Support Structure — Given the immense weight of a fully loaded condenser, robust steel or concrete support systems, often incorporating spring supports, are used to isolate the turbine from condenser-induced stresses.

Surface condensers are generally classified by orientation and flow configuration. In downflow condensers, the most common design in large power plants, steam flows vertically downward through the tube bundle toward the hotwell. In central flow and evaporative designs, steam approaches the tube bundle from multiple directions to improve distribution and reduce pressure drop across the unit. Construction materials, tube layout density, and baffle arrangement are all optimized through detailed thermal and fluid dynamics analysis to balance heat transfer efficiency against pressure drop and manufacturing cost.

Surface condensers can be categorized based on the direction of steam flow relative to the tube bundle, as well as by their specific application. Understanding these types helps engineers select the right configuration for a given plant layout and cooling water source.

• Downflow Surface Condenser — The most widely used type in modern power stations. Steam enters at the top and flows vertically downward over the tube bundle, with air removal typically occurring near the bottom where the coolest, most concentrated non-condensable gases collect. This design is efficient and well-suited to large turbine exhaust connections.
• Central Flow (Radial Flow) Condenser — Steam flows radially inward toward a central air-cooling section, which improves the removal of non-condensable gases and tends to offer more uniform steam distribution across the tube bundle.
• Evaporative Condenser — Rather than using a separate cooling water circuit, this type sprays water directly over the tube bundle while a fan draws air across it, relying on evaporative cooling. These are less common in large utility-scale plants but are used in smaller or water-constrained applications.
• Jet Condenser (Direct Contact Type) — Though not a true surface condenser, it's worth distinguishing: in a jet condenser, cooling water is sprayed directly into contact with the steam, mixing the two fluids. This is simpler and cheaper but unsuitable where condensate purity must be preserved, which is why surface condensers dominate in modern high-purity feedwater systems.
• Single-Pass vs. Multi-Pass Condensers — Classified by how many times cooling water traverses the tube bundle. Single-pass designs are simpler and have lower pressure drop, while two-pass designs allow for more compact condenser footprints at the cost of slightly higher pumping power.

The choice between these types depends on factors such as available cooling water source, plant footprint constraints, required vacuum level, and capital cost considerations, all balanced against long-term operating efficiency goals.

Evaluating a surface condenser's performance requires monitoring several interconnected parameters, since a shift in one often signals a problem elsewhere in the system.

• Vacuum (Condenser Pressure) — The single most critical performance indicator. Lower condenser pressure (higher vacuum) means better turbine efficiency; any deviation from design vacuum typically signals fouling, air ingress, or cooling water flow issues.
• Terminal Temperature Difference (TTD) — The difference between the saturation temperature of the steam and the outlet temperature of the cooling water. A rising TTD over time usually indicates tube fouling or scaling, reducing heat transfer effectiveness.
• Cleanliness Factor — This ratio, which is used to monitor fouling patterns and plan cleaning operations before efficiency losses become significant, compares actual heat transfer performance to the theoretical clean-tube performance.
• Condensate Subcooling — The degree to which condensate temperature falls below saturation temperature. Excess subcooling wastes thermal energy, while too little can risk pump cavitation.
• Cooling Water Flow Rate and Temperature Rise — Directly affects the condenser's heat rejection capacity; inadequate flow reduces the achievable vacuum and increases backpressure on the turbine.
• Air Ingress Rate — Measured to ensure the vacuum system is adequately removing non-condensable gases; excessive air ingress degrades heat transfer and can be a sign of seal or joint deterioration.

Plant operators typically track these parameters continuously through instrumentation and compare them against design baselines, using deviations as early warning indicators for maintenance needs long before a full performance audit would otherwise catch the issue.

Like any major piece of thermal equipment, the surface condenser offers significant benefits balanced against certain operational challenges.

1. Enables high-purity condensate recovery since steam and cooling water never mix, protecting boiler tubes from contamination.
2. Improves overall plant thermal efficiency by allowing operation at deep vacuum conditions.
3. Reduces makeup water requirements and associated water treatment costs.
4. Minimizes environmental impact when paired with cooling towers, reducing thermal discharge to natural water bodies.
5. Long operational lifespan (often 25-40 years) when properly maintained.
6. Scalable design suitable for everything from small industrial turbines to massive utility-scale power stations.

1. High capital cost compared to simpler direct-contact condensers
2. Susceptible to fouling and scaling on tube surfaces, which gradually reduces heat transfer efficiency
3. Requires a reliable, adequately sized cooling water source, which can be a constraint in water-scarce regions
4. Vulnerable to tube leaks, which can allow cooling water to contaminate the high-purity steam cycle
5. Requires continuous air removal systems, adding to auxiliary power consumption
6. Large physical footprint and weight, requiring substantial structural support and space allocation

Plant designers and operators can make well-informed decisions on condenser sizing, material selection, and maintenance investment in relation to the particular water quality and operational conditions at their site by being aware of these trade-offs.

Maintenance & Troubleshooting

Because surface condensers operate continuously under demanding thermal and mechanical stress, a disciplined maintenance program is essential to sustaining performance over their multi-decade service life.

Routine maintenance practices include the following:

• Tube Cleaning — Mechanical cleaning (brushes, scrapers) or chemical cleaning is performed periodically to remove scale, biological fouling, or sediment buildup that reduces heat transfer efficiency.
• Online Ball Cleaning Systems — Many modern condensers use continuous tube-cleaning systems that circulate sponge rubber balls through the tubes during operation to prevent fouling before it accumulates.
• Leak Detection and Tube Plugging — Periodic testing (using helium detectors, dye tests, or eddy current testing) identifies leaking tubes, which are then plugged or replaced to prevent cooling water contamination of the condensate.
• Air Ejector and Vacuum System Checks — Regular inspection ensures the vacuum system is functioning correctly, since even small increases in air ingress can noticeably degrade condenser vacuum.
• Water Box and Tube Sheet Inspection — Periodic opening and inspection during planned outages checks for corrosion, erosion, and sediment accumulation in the water boxes.
• Cathodic Protection Monitoring — For condensers using seawater or brackish cooling water, sacrificial anodes or impressed current systems are checked regularly to prevent galvanic corrosion of tube sheets and water boxes.

Common troubleshooting scenarios:

• Declining vacuum: Often traced to air ingress through gland seals, expansion joints, or valve packing, or to reduced cooling water flow.
• Rising TTD: Usually indicates fouling or scaling on tube surfaces, prompting a cleaning cycle.
• Condensate contamination: Signals a tube leak, requiring immediate identification and plugging of the affected tube to protect boiler water chemistry.
• Erosion-corrosion at tube inlets: Common in high-velocity cooling water zones, often addressed with inlet end protection devices such as ferrules or specialized inlet tube designs.

A well-structured predictive maintenance program — combining performance trending, periodic inspections, and prompt response to early warning signs — extends condenser life significantly and avoids costly unplanned outages.




Applications

Surface condensers are indispensable across a wide range of industries wherever steam power or large-scale heat rejection is involved.

• Thermal and Nuclear Power Plants — The primary application, where surface condensers handle massive steam volumes from turbine exhausts to maximize cycle efficiency and enable feedwater recovery.
• Combined Cycle Power Plants — Used in the steam turbine portion of the cycle to condense exhaust steam generated from waste heat recovery boilers.
• Petrochemical and Refinery Plants — Employed in steam turbine drives for compressors and pumps, as well as in various process heat rejection applications.
• Sugar and Paper Mills — Utilized in captive power generation setups where process steam turbines require efficient condensation for optimal plant economics.
• Marine Propulsion Systems — Certain large marine steam turbine installations use surface condensers to condense exhaust steam using seawater as the cooling medium.
• District Heating and Cogeneration Plants — Applied in combined heat and power systems where steam cycle efficiency directly impacts both electricity generation and heat supply economics.

Across all these applications, the underlying function remains consistent: converting exhaust steam back into usable, high-purity water while maximizing the thermodynamic efficiency of the broader steam cycle.




Frequently Asked Questions

1. What is the main function of a surface condenser?

A surface condenser converts turbine exhaust steam back into water without mixing it with cooling water, maintaining vacuum and enabling high-purity condensate recovery for reuse in the boiler feed cycle.

2. Why is vacuum important in a surface condenser?

Vacuum increases the pressure differential across the turbine, allowing steam to expand further and extract more energy, which directly improves overall thermal efficiency and reduces fuel consumption.

3. What causes fouling in surface condensers?

Fouling results from scale, sediment, or biological growth accumulating on tube surfaces, reducing heat transfer efficiency. It typically stems from poor water quality, inadequate treatment, or infrequent cleaning schedules.

4. How often should condenser tubes be inspected?

Inspection frequency depends on cooling water quality and duty cycle, but most plants perform leak testing, cleaning, and tube sheet inspections during scheduled outages, typically every 6 to 12 months.

5. What materials are best for condenser tubes?

Material choice depends on cooling water type: admiralty brass and stainless steel suit freshwater, while titanium and copper-nickel alloys resist corrosion better in seawater or brackish-water applications.



Request a Free Quote →



Conclusion

The surface condenser may operate out of sight at the base of a turbine hall, but its role in power generation and industrial steam systems is anything but minor. By efficiently converting exhaust steam back into water while maintaining the vacuum conditions essential to turbine performance, it directly shapes plant efficiency, water conservation, and long-term operating costs. Understanding its working principle, construction, performance indicators, and maintenance requirements equips engineers and plant managers to extract maximum reliability and efficiency from this critical piece of equipment. Whether in a coal-fired power station, a combined cycle plant, or a large industrial facility, investing in the right surface condenser design and maintaining it diligently pays dividends in efficiency, reliability, and operational longevity for decades to come.
