Sizing an air receiver correctly is essential for optimal system performance. A receiver that's too small won't provide adequate buffering, causing the compressor to cycle too frequently. One that's oversized adds unnecessary cost and floor space without proportional benefit.
Several factors influence proper sizing:
Compressor Output (CFM) — the cubic feet per minute of air the compressor produces.
System Demand Profile — whether air usage is steady or has frequent spikes.
Compressor Type — fixed-speed compressors typically require larger receivers to reduce cycling, while variable-speed drive (VSD) compressors need less storage since they modulate output automatically.
Allowable Pressure Drop — the acceptable pressure differential between compressor cut-in and cut-out points.
A commonly used rule of thumb for fixed-speed reciprocating compressors is to provide roughly 4 to 6 gallons of receiver capacity per CFM of compressor output. For VSD compressors, this figure is often reduced since the compressor itself handles demand fluctuations more dynamically.
Facilities with high-demand, intermittent processes—such as those using pneumatic cylinders for packaging or stamping—often require larger receivers to handle short bursts of high air consumption without causing a systemwide pressure dip. Proper sizing calculations should always factor in future expansion plans, as undersizing early on can lead to costly retrofits later.
Safety Features

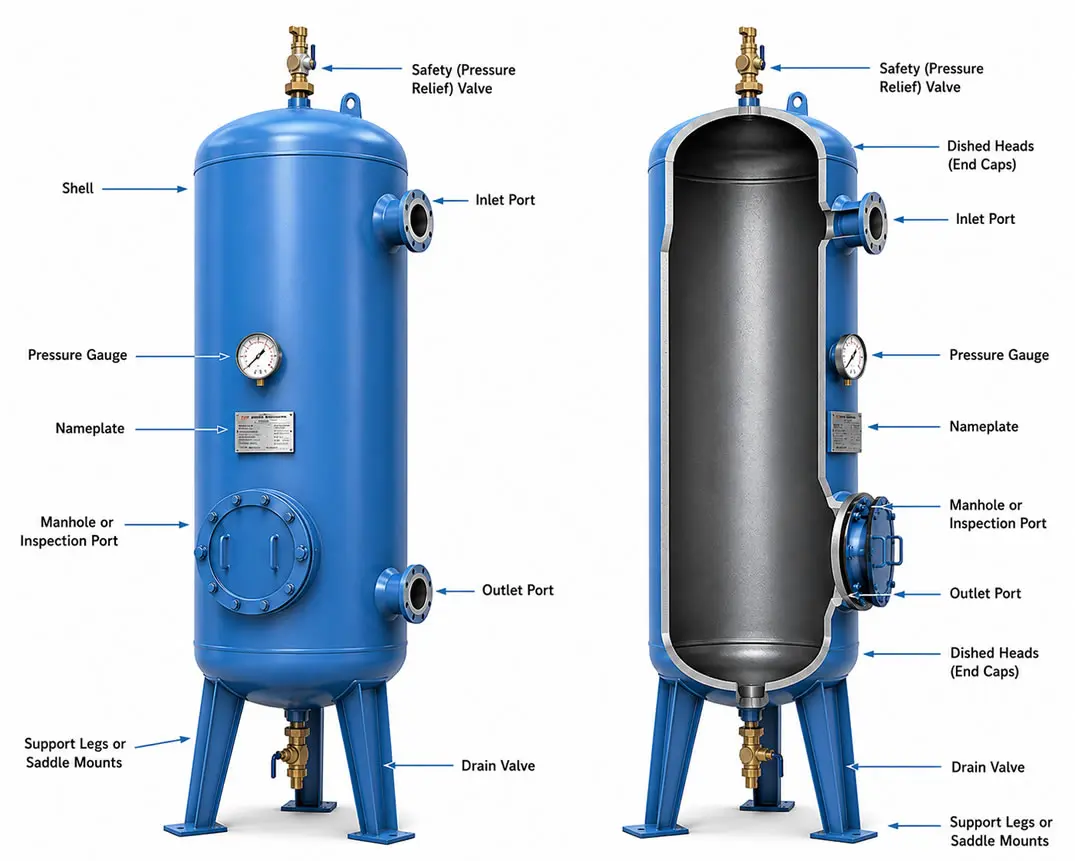

Given that air receivers operate under significant internal pressure, safety is paramount. A poorly maintained or improperly designed receiver can pose serious risks, including catastrophic rupture. Standard safety features include:
Pressure Relief Valve (PRV) — automatically vents excess air if internal pressure exceeds the safe operating threshold, preventing over-pressurization.
Pressure Gauge — provides continuous visual monitoring of internal pressure so operators can detect abnormalities early.
Automatic Drain Valve — prevents water accumulation, which can lead to internal corrosion and reduced vessel integrity over time.
Manhole/Inspection Access — This enables regular internal inspection to detect corrosion, pitting, or structural weaknesses before they become dangerous.
Corrosion Allowance in Design — Manufacturers build in extra wall thickness to account for gradual material loss over the vessel's service life.
Certification Nameplate — clearly displays the maximum allowable working pressure (MAWP) so operators never inadvertently exceed safe limits.
Regulatory bodies in most countries require periodic pressure testing (often hydrostatic testing) and certified inspections, particularly for larger receivers, to confirm the vessel remains structurally sound throughout its operational life. Ignoring these safety protocols isn't just risky — it's often a violation of workplace safety regulations.
Maintenance & Inspection
Like any pressure vessel, an air receiver requires ongoing maintenance to ensure safe and efficient operation over its lifespan, which can often exceed 20 years with proper care.
Routine maintenance tasks include the following:
Draining Condensate Regularly — Moisture buildup accelerates internal corrosion, so daily or automatic draining is essential.
Checking the Pressure Relief Valve — Testing the PRV periodically ensures it will function correctly in an overpressure event.
Inspecting for External Corrosion — Rust or paint deterioration on the shell can indicate underlying material degradation.
Internal Inspection — performed through the manhole or inspection port, this checks for pitting, cracking, or wall thinning.
Verifying Gauge Accuracy — pressure gauges should be periodically calibrated to ensure accurate readings.
Examining Support Structure — Particularly in vibration-heavy settings, legs, saddles, or mounting brackets should be examined for structural integrity.
Many jurisdictions mandate formal inspections by certified professionals at set intervals — often annually or biannually — along with periodic hydrostatic pressure testing. Keeping detailed maintenance logs is not just good practice; it's frequently a legal requirement and essential for insurance and liability purposes. A well-maintained receiver not only lasts longer but also minimizes the risk of unplanned downtime or safety incidents.
Applications
Air receivers are used across virtually every industry that relies on compressed air. Common applications include:
Manufacturing Plants — powering pneumatic tools, assembly line actuators, and automated machinery.
Automotive Industry — supplying air for spray painting booths, tire inflation, and pneumatic assembly tools.
Food and Beverage Processing — providing clean, stable compressed air for packaging and bottling lines.
Oil and Gas — supporting pneumatic instrumentation and control systems in refineries and processing plants.
Construction — powering jackhammers, nail guns, and other portable pneumatic equipment.
Textile Industry — used in air-jet looms and other pneumatic textile machinery.
Medical and Pharmaceutical Facilities — supplying oil-free compressed air for sensitive laboratory and production processes.
Power Generation — supporting pneumatic controls and instrumentation in plant operations.
Regardless of the sector, the underlying need remains the same: a stable, buffered, and reliable source of compressed air that keeps operations running smoothly.
Frequently Asked Questions
1. What size air receiver do I need for my compressor?
Compressor CFM, type, and demand pattern all affect size. A common guideline is 4–6 gallons per CFM for fixed-speed compressors.
2. How often should an air receiver be drained?
Ideally daily, or continuously via an automatic drain valve, to prevent moisture buildup, internal corrosion, and reduced vessel lifespan over time.
3. Can an air receiver explode?
Yes, if poorly maintained, corroded, or over-pressurized. Proper safety valves, inspections, and adherence to design codes greatly minimize this risk.
4. What's the difference between vertical and horizontal air receivers?
Vertical receivers save floor space, while horizontal ones offer easier access for maintenance and are often preferred for larger storage capacities.
5. How long does an air receiver typically last?
With proper maintenance, inspections, and corrosion control, air receivers commonly last 20 years or more before requiring replacement.
Conclusion
The air receiver may not be the most glamorous piece of equipment in a compressed air system, but its role is undeniably critical. From stabilizing pressure and reducing compressor cycling to separating moisture and providing a safety buffer during demand spikes, this unassuming pressure vessel keeps entire industrial operations running smoothly and efficiently. Understanding its design standards, proper sizing, safety features, and maintenance requirements isn't just useful knowledge for engineers — it's essential for any facility manager or business owner who depends on compressed air to keep production moving. Investing in the right receiver and maintaining it properly pays dividends in equipment longevity, energy savings, and—most importantly — workplace safety.
