Coil type heat exchanger
Heat exchangers are essential components in various industrial processes, enabling efficient heat transfer between fluids. Coil Type Heat Exchangers are a specific type designed with coiled tubes or coils, enhancing the heat transfer efficiency. These heat exchangers are widely used in industries such as HVAC, refrigeration, automotive, and food processing.
What is a Coil Type Heat Exchanger?
A Coil Type Heat Exchanger is a device that uses coiled tubes to facilitate heat exchange between two fluids without allowing them to mix. The coiled structure increases the surface area for heat transfer, making it more efficient in compact spaces.
How Does a Coil Type Heat Exchanger Work?
Coil-type heat exchangers work based on the principle of heat transfer through a coil. One fluid flows through the coiled tubes, while the other fluid surrounds the coil. Heat is transferred from the hotter fluid to the cooler one through the surface of the coil, either by convection or conduction. The direction of flow can vary:
- Counterflow: Fluids flow in opposite directions, which maximizes heat transfer efficiency.
- Parallel Flow: Fluids flow in the same direction, which may not be as efficient but works for specific needs.
Working Principle of Coil Type Heat Exchanger
The working principle of a coil-type heat exchanger involves convection and thermal conduction. Heat transfer happens when hot fluid (like refrigerant or oil) flows through the coiled tube. The cooler fluid (often air or water) surrounds the coils, absorbing heat from the hot fluid. As the fluids pass through the system, heat moves from the hotter fluid to the cooler one, thereby lowering the temperature of the hot fluid and raising the temperature of the cooler one. The design of the coil increases surface area, enhancing the heat exchange process.
Coil Type Heat Exchanger Formula
The heat exchange rate in a coil-type heat exchanger can be estimated using the Heat Transfer Equation:
Q = U × A × ΔT
Where:- Q is the heat transfer rate (W or BTU/hr)
- U is the overall heat transfer coefficient (W/m²·K or BTU/hr·ft²·°F)
- A is the heat transfer area (m² or ft²)
- ΔT is the temperature difference between the hot and cold fluids (°C or °F)
For coil-type heat exchangers, the A (surface area) can be determined by the length of the coil, diameter of the tube, and number of turns in the coil:
A = π × D × L × N
Where:- D is the diameter of the coil,
- L is the length of the coil,
- N is the number of turns of the coil.
This formula helps in designing and sizing coil-type heat exchangers for different applications.

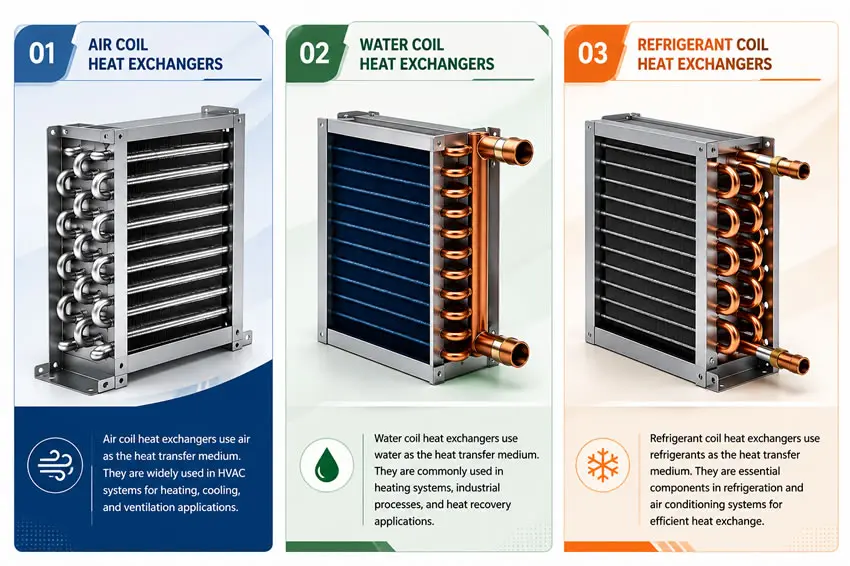

Types of Coil Type Heat Exchangers
There are several types of coil-type heat exchangers, each suited to specific applications:
- Air Coil Heat Exchangers: These are commonly used in HVAC systems to either heat or cool the air inside buildings.
- Water Coil Heat Exchangers: Water flows through the coils, while air or another fluid surrounds the coils. They are often used in industrial applications for cooling or heating water-based fluids.
- Refrigerant Coil Heat Exchangers: Refrigerants flow through the coils and absorb heat from the surrounding environment. These are typically used in refrigeration and air conditioning systems.
Benefits of Coil Type Heat Exchangers
- Efficient Heat Transfer: The coiled structure increases the surface area for heat transfer, enhancing the overall efficiency of the system.
- Compact Design: Ideal for applications with limited space, the coiled tubes allow for a compact heat exchange solution.
- Versatility: Suitable for use with various fluids, making them adaptable to a wide range of industries.
- Low Maintenance: Coil-type heat exchangers have fewer issues with fouling or clogging, resulting in less maintenance over time.
- Durability: Built with corrosion-resistant materials, coil-type heat exchangers tend to have a longer operational lifespan.
Precautions When Using Coil Type Heat Exchangers
- Proper Material Selection: Choose materials resistant to corrosion, especially if the fluids involved are aggressive or have high temperature and pressure.
- Avoid Overheating: Ensure that the hot fluid does not exceed the temperature ratings of the coil material to prevent structural damage or reduced efficiency.
- Regular Maintenance: Periodically check the coils for signs of fouling or buildup, especially when using air or water with high particulate matter.
- Correct Fluid Flow Rate: Ensure the correct flow rate of both the hot and cold fluids to prevent excessive turbulence or insufficient heat exchange.
- Monitor Pressure Levels: Ensure pressure inside the coil is within the manufacturer's recommended limits to avoid damage and failures.
Applications of Coil Type Heat Exchangers
Coil-type heat exchangers are used in a wide variety of industries for both heating and cooling purposes. Some of the key applications include:
- HVAC Systems: Used for heating or cooling air and maintaining desired indoor temperatures.
- Automotive Cooling: Used for cooling engine fluids, transmission oils, and refrigerants in vehicles.
- Refrigeration and Air Conditioning: Crucial in transferring heat from refrigerant to air or water in HVAC systems.
- Industrial Cooling Systems: Used to regulate temperature in compressors, turbines, and reactors.
- Food and Beverage Industry: Used for heating, cooling, or pasteurizing food products.
- Renewable Energy: Used in solar and geothermal systems for heat transfer in energy conversion processes.
Leading Manufacturers of Coil Type Heat Exchangers in India
Several manufacturers in India specialize in producing high-quality coil-type heat exchangers. Some of the leading manufacturers include:
- United Cooling Systems: Renowned for customized solutions and durable, energy-efficient designs.
- Finfan Coolers: A trusted supplier of high-performance heat exchangers for various applications.
- Kelvion India: A leading manufacturer offering high-efficiency heat exchangers for diverse sectors.
- Vahbiz Engineering: Known for reliable and energy-efficient coil-type heat exchangers.
Conclusion
Coil-type heat exchangers are vital in many industrial applications, offering efficient heat transfer, compact designs, and versatility. Whether used in HVAC systems, refrigeration, industrial cooling, or renewable energy, these heat exchangers play a crucial role in optimizing performance and energy efficiency. When choosing a coil-type heat exchanger, consider factors such as material durability, fluid compatibility, and space limitations.
With the right precautions, these systems can offer long-term reliability and low maintenance costs. Manufacturers like United Cooling Systems and Finfan Coolers in India provide excellent options for businesses seeking high-quality, energy-efficient heat exchangers for their projects.
